CA3161 and CA3162 Monolithic Integrated Circuits
Monolithic ICs for BCD to Seven Segment Decoding and A/D Conversion
- Spec name: CA3161
- Input Voltage: +5.5 V
- Output Voltage "Off": +7 V
- Output Voltage "On": +10 V
Top Features:
- TTL Compatible Input Logic Levels
- 25mA Constant Current Segment Outputs
- Pin Compatible with Industry Standard Decoders
- Low Standby Power Dissipation (18mW Typ)
The CA3161 is a monolithic integrated circuit that acts as a BCD to seven-segment decoder with constant current segment drivers. It can be paired with the CA3162 A/D Converter.
- Spec name: CA3162
- Input Voltage: +15 V
- Temperature Range: 0 to 75
Top Features:
- Dual Slope A/D Conversion
- Multiplexed BCD Display
- Ultra Stable Internal Band Gap Voltage Reference
- Internal Timing - No External Clock Required
The CA3162 is a monolithic A/D converter with a 3-digit multiplexed BCD output. It works seamlessly with the CA3161 BCD-to-Seven-Segment Decoder/Driver.
Related Documents: CA3161 IC Datasheet
Related Documents: CA3162 IC Datasheet

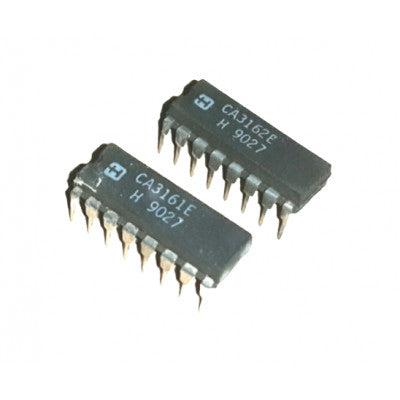

* Images are for illustration only; actual product may vary.
