CA3102 Differential Amplifier IC
High-performance differential amplifiers with constant current transistors
- Collector-to-Emitter Voltage: 15V
- Collector-to-Base Voltage: 20V
- Collector-to-Substrate Voltage: 20V
- Emitter-to-Base Voltage: 5V
- Collector Current: 50 mA
- Temperature Range: -55°C to 125°C
- Maximum Power Dissipation: 300mW
- Maximum Junction Temperature: 150°C
Top Features:
- Power Gain 23dB @ 200MHz
- Noise Figure 4.6dB @ 200MHz
- Dual-channel amplifiers on one substrate
- Wide temperature range: -55°C to 125°C
The CA3102 consists of two independent differential amplifiers with constant current transistors on a monolithic substrate. With low 1/f noise and an fT above 1GHz, this device is suitable from DC to 500MHz. Ideal for dual-channel applications requiring matched performance.
Bias and load resistors are excluded for maximum application flexibility. The monolithic design ensures close electrical and thermal matching of the amplifiers. Separate substrate connection enhances design flexibility.
The CA3102 is available in Pb-Free Plus Anneal variants, meeting RoHS compliance standards.
For more details or bulk pricing, contact our sales team directly: sales02@thansiv.com | +91-8095406416

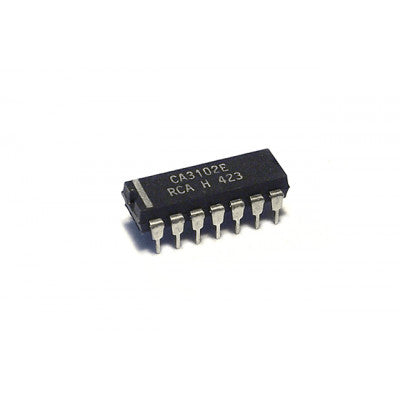

*Images are for illustration only; actual product may vary.
