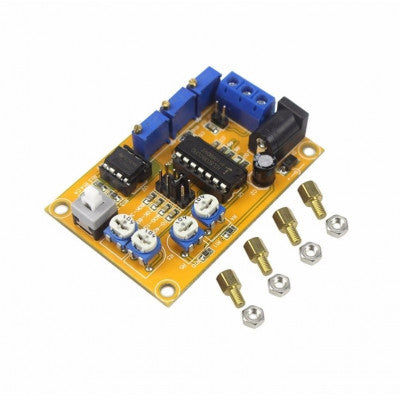

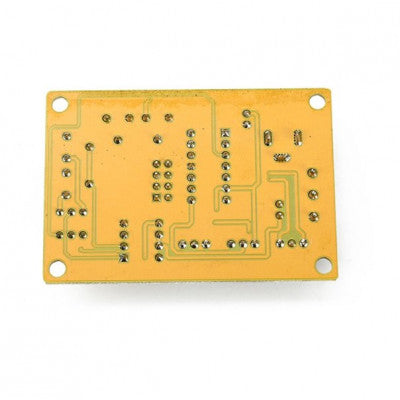

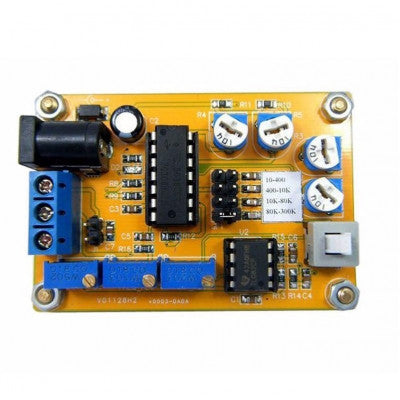

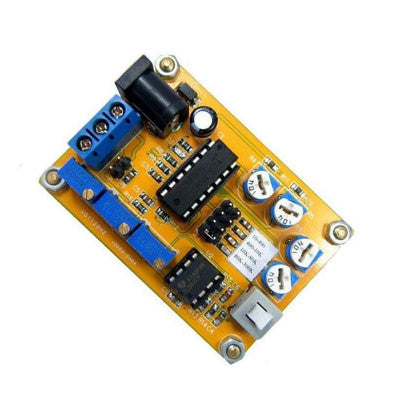

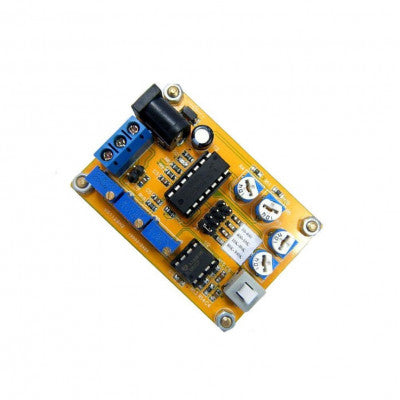

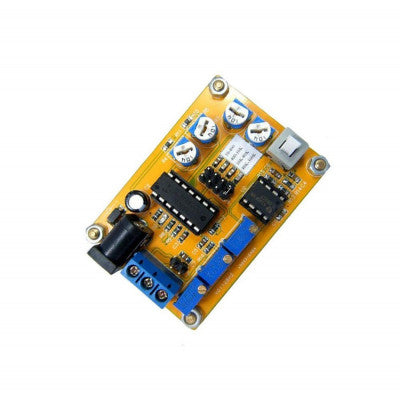

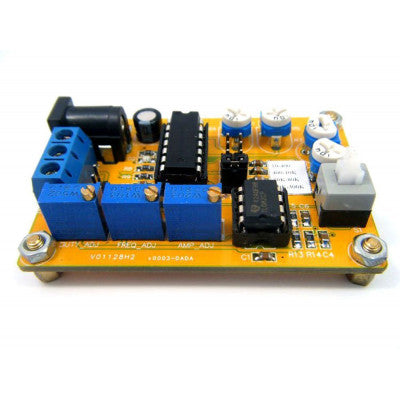

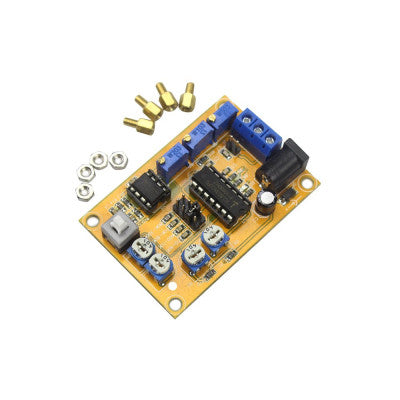

C32 ICL8038 Sine/Delta/Square Wave Signal Generator Module
An integrated circuit designed to generate Sine, Square, and Triangular/Delta waveforms.
- Operating Voltage (VDC): 12 ~ 25
- Frequency Range: 10Hz ~ 300kHz
- Distortion: 1%
- Duty Ratio: 2% to 98%
- Temperature Drift: 50ppm
- Triangular Wave Output Linearity: 0.1%
- Length (mm): 63
- Width (mm): 44
Features:
- Working voltage: +12V ~ +25V
- Can output triangular wave, a rectangular wave, and sine wave
- Frequency range: 10Hz ~ 300kHz
- Low distortion sine wave: 1%

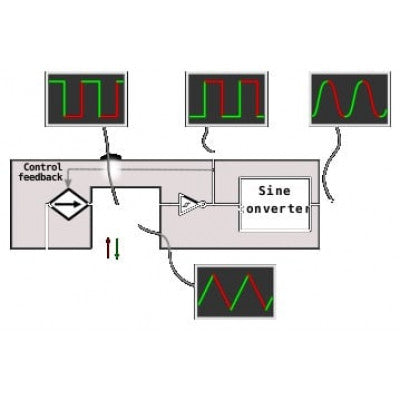

The C32 ICL8038 Sine/Delta/Square Wave Signal Generator Module is based on bipolar monolithic technology involving Schottky barrier diodes. It has a voltage-controlled oscillator capable of producing frequencies between a millihertz and 100kHz. Triangular waves are converted to sine waves involving a non-linear network. The output frequency can be set by resistors or the external control voltage. The temperature drift can be optimized to less than 250ppm/C by combining it with a PLL.
Package Includes: 1 x C32 ICL8038 Sine/Delta/Square Wave Signal Generator Module 10-300kHz
Images are for illustration only; actual product may vary.
