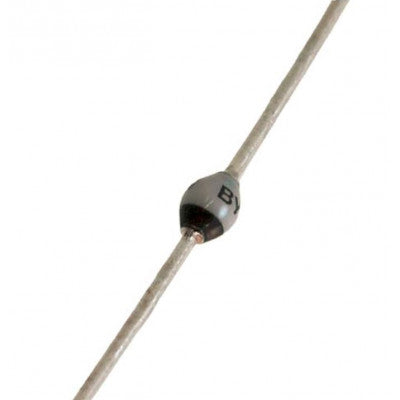

BYV95C Avalanche Fast Recovery Rectifier Diodes
Avalanche fast recovery rectifier diodes with PRV of 200-1000 Volts and 1.5 Amperes
- Peak Repetitive Reverse Voltage: 600 V
- Maximum RMS Voltage: 420 V
- Maximum DC Blocking Voltage: 600 V
- Maximum Average Forward Rectified Current: 1.5 A
- Non-Repetitive Peak Forward Surge Current: 35 A
- Operating Junction Temperature Range: -65 to +175 °C
- Storage Temperature Range: -65 to +175 °C
Top Features:
- High current capability
- High surge current capability
- High reliability
- Low reverse current
The BYV95C Avalanche Fast Recovery Rectifier Diodes are designed for high efficiency with features like low forward voltage drop and fast switching capability. Its hermetically sealed package ensures high temperature metallurgically bonded construction for reliable performance. The diodes have a fast switching speed, making them suitable for various applications. They meet environmental standards of MIL-S-19500 and can operate at 1.5 Amperes with no thermal runaway at TA=55°C. The diodes have a typical IR of less than 0.1µA and can withstand high-temperature soldering up to 350°C for 10 seconds.
Mechanical Characteristics:
- Case: D2 Molded plastic
- Epoxy: UL94V-O rate flame retardant
- Lead: Axial lead solderable per MIL-STD-202, Method 208 guaranteed
- Polarity: Color band denotes cathode end
- Mounting position: Any
- Weight: 0.465 gram
Related Document: BYV95 Rectifier Diode Data Sheet
Images are for illustration only; actual product may vary.
