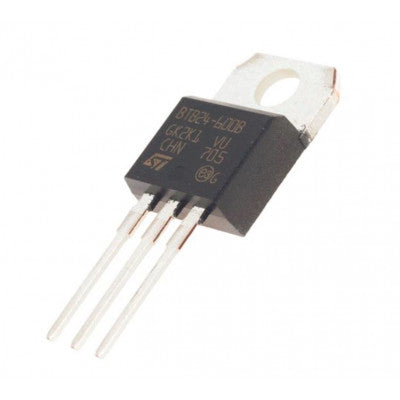

25A Thyristor Bidirectional SCR
High-performance 25A Thyristor Triac with snubberless design for inductive loads
- Product Type: Triac
- Subcategory: Thyristor
- Non Repetitive On-State Current: 260A
- Rated Repetitive Off-State Voltage VDRM: 600V
- Off-State Leakage Current @ VDRM IDRM: 5 uA
- Current Rating: 25A
- On-State Voltage: 1.55V
- Holding Current Ih Max: 75mA
- Gate Trigger Voltage – Vgt: 1.3V
- Gate Trigger Current – Igt: 50mA
- Minimum Operating Temperature: -40°C
- Maximum Operating Temperature: +125°C
- Mounting Style: Through Hole
- Package/Case: TO-220-3
Features:
- High current triac
- Low thermal resistance with clip bonding
- High commutation (4 quadrant) or very high commutation (3 quadrant) capability
- BTA series UL1557 certified (File ref: 81734)
The snubberless versions are especially recommended for use on inductive loads, due to their high commutation performances. Applications include the ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits, etc., or for phase control operation in light dimmers, motor speed controllers, and similar.
*Images are for illustration only; actual product may vary.
