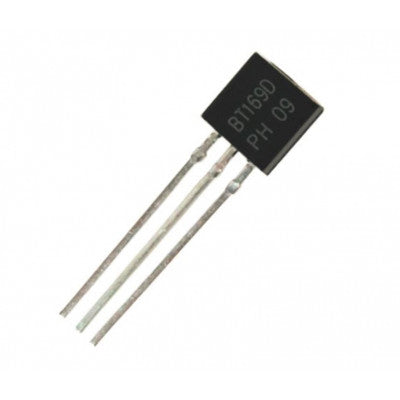

BT169D Planar Passivated SCR
A sensitive gate SCR for low power gate trigger circuits.
- Repetitive Peak Reverse Voltage: 400V
- Repetitive Peak Off-state Voltage: 400V
- Average on-state current: 0.5A
- Effective on-state current: 0.8A
- Non-Repetitive Peak On-state Current: 8A
- Gate trigger current: 200µA
- Package: SOT54 (TO-92) plastic
Features
- Planar passivated for voltage ruggedness and reliability
- Sensitive gate
- Direct triggering from low power gate circuits and logic ICs
This SCR is designed for direct interfacing with microcontrollers, logic ICs, and low power gate trigger circuits. Suitable for ignition circuits, lighting ballasts, protection circuits, and switched mode power supplies.
Related Document: BT169D SCR Data Sheet
* Images are for illustration only; actual product may vary.
