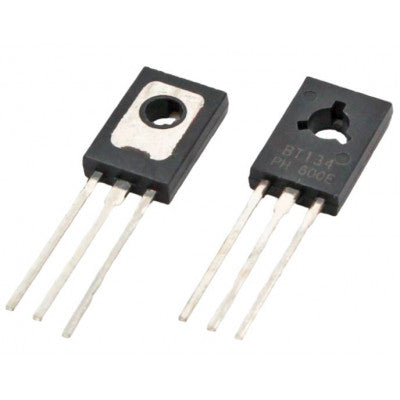

BT134 Triac - 600V - 4A (BT134-600E)
Planar passivated sensitive gate four quadrant triac in a SOT82 (SIP3) plastic package.
- Repetitive Peak off-State voltage: 600V
- RMS on-state current: 4A
- Non-Repetitive Peak on-State Current: 25A
- Peak Gate Current: 2A
- Peak Gate Voltage: 5A
- Peak Gate Power: 5W
- Storage Temperature: -40 to 150 °C
Top Features:
- High blocking voltage capability
- Direct interfacing to low power gate drive circuits
- Low holding current for low current loads
- Compact package
This "series E" sensitive gate triac is ideal for general purpose bidirectional switching and phase control applications. It can be easily interfaced with microcontrollers, logic integrated circuits, and low power gate trigger circuits.
Applications:
- General purpose low power motor control
- Home appliances
- Industrial process control
Package Includes: 1 x BT134 Triac - 600V - 4A (BT134-600E) Triac
* Images are for illustration only; actual product may vary.
