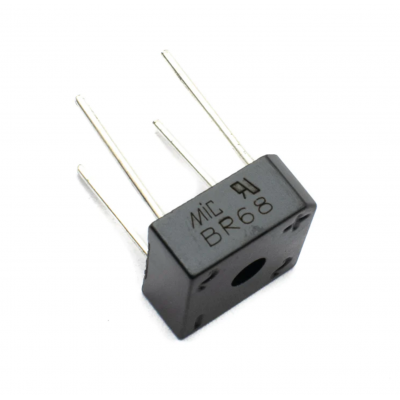

BR68 Single Phase 6 Amp Bridge Rectifier
Single Phase 6 Amp Bridge Rectifier with 800V Reverse Voltage Rating
- Type: 4 Pin Through Hole
- Reverse Voltage Rating: 800V
- Forward Voltage Rating: 1V
- Package Type: Through Hole
Top Features:
- Printed circuit board compatibility
- Low forward voltage drop
- Low leakage current
- Available in types from 600V to 800V
Mechanical Characteristics:
- Case: Molded plastic body
- Mounting: Hole thru for #6 screw
- Mounting Position: Any
- Lead: As marked
Specifications:
- Peak Repetitive Reverse Voltage: 800V
- Maximum DC Blocking Voltage: 800V
- Maximum RMS Voltage: 560V
- Operating Junction Temperature Range: -65 to +125°C
- Storage Temperature Range: -65 to +150°C
Related Document: BR68 Rectifier Data Sheet
* Images are for illustration only; actual product may vary.
