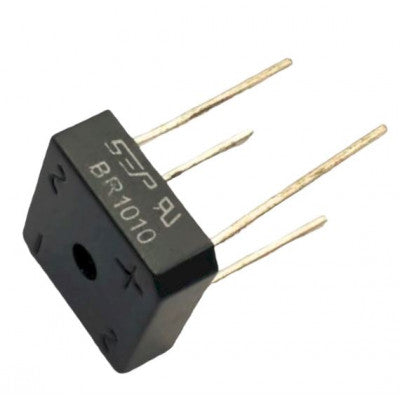

BR1010 Single Phase Bridge Rectifier
Single Phase Bridge Rectifier with 1000V Peak Reverse Voltage
- Type: Single Phase
- Size: 19.6mm Length, 19.6mm Width, 7.5mm Height
- Voltage Rating: 1000V Peak Reverse, 700V RMS, 1.1V Forward
- Current Rating: 10A Forward, 200A Surge, 5uA Reverse
- Temperature Rating: -55 to 150 Deg C
- Mounting: PCB
- Thermal Resistance: 9.4 Deg C/W
Features:
- Higher output voltage
- Higher output power
- Higher transformer utilization factor
- Can be constructed with or without transformer
BR1010 Single Phase Bridge Rectifier has four terminals, with the main terminals labeled Anode and Cathode across all four layers. The control terminal, called the Gate, is attached to P Type material near the Cathode, acting exclusively as a bistable switch. It is used in power circuits to detect the amplitude of modulated radio signals, supply polarized voltage for welding, and more. This bridge rectifier is smoother than the half-wave rectifier and does not require a center tap transformer for single-phase applications.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
