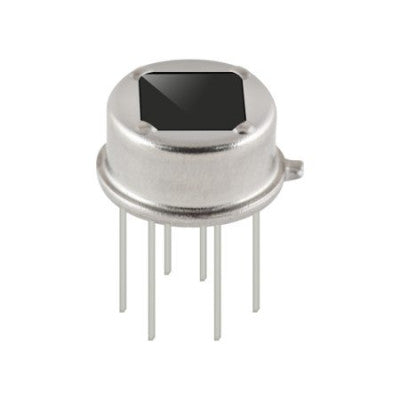

BQ604 PIR Sensor
Intelligent PIR sensor with adjustable settings for various applications
- Operating Voltage (VDC): 3.7
- Operating Current: 9.5uA
- Sensitivity: 2000uA
- Low Pass Filter Cut-Off Frequency: 7 Hz
- High Pass Filter Cut-Off Frequency: 0.44 Hz
- Oscillator Frequency on Chip: 64 KHz
- Shipment Weight: 0.01 kg
- Shipment Dimensions: 5 x 3 x 1 cm
Top Features:
- Simplified Circuitry with Fully Integrated Sensor
- Robust Design Against False Starts
- Wide View Angle
The BQ604 PIR sensor features 4 elements and 6 pins, with horizontal and vertical detection angles matching at 4.9 x 4.9. This intelligent sensor allows for adjustable delay time, sensitivity, and lighting, making it ideal for ceiling lights and corridors. It is designed to provide accurate motion detection while minimizing false triggers.
Package Includes: 1 x BQ604 Digital Quad Elements type PIR Sensor
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
