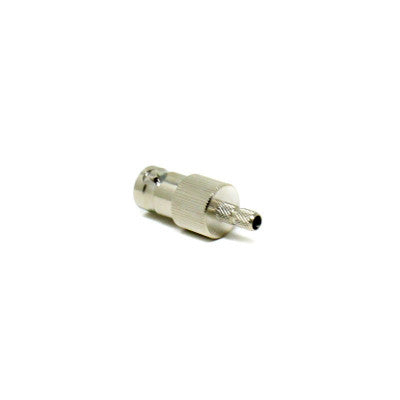

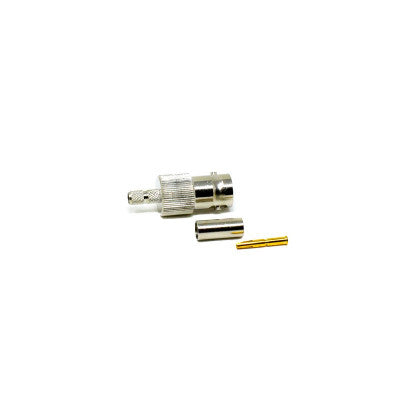

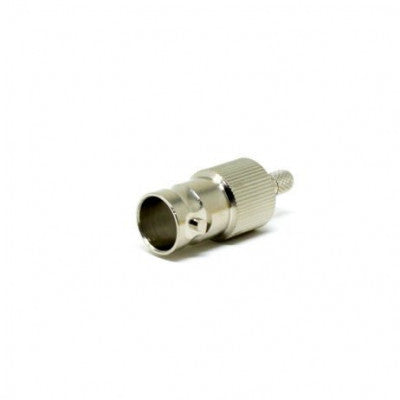

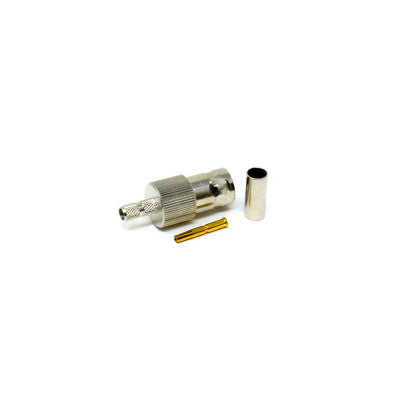

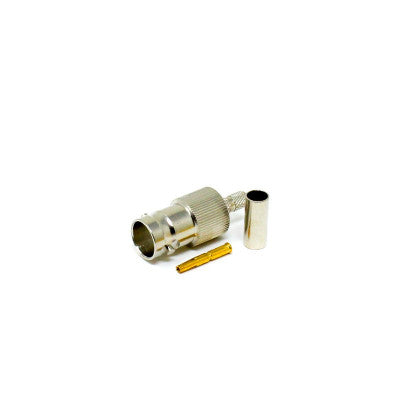

BNC Connector Video Camera Straight Female
Designed for terminating industry-standard 50 ohm and 75-ohm cables with durability and perfect design.
- Brand: ElecBee
- Orientation: Straight
- Gender: Female
- Mounting Type: Cable
- Termination Style: Solder Type
- Mounting Feature: None
- Polarity: Standard
- Body Material: Zinc Alloy
- Body Plating: Nickel Plating
- Impedance: 50/70 ohms
- Shield Termination: Solder
Features:
- Cable Connector, Jack/female, Straight/180,50, UT085
- Compact design for less installation space required
- Easy quick connect and disconnect coupling
Main Application of BNC Connectors: Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Medical Equipment, Instrumentation, CCTV, CATV, HDTV, etc.
Electrical Characteristics:
- Impedance: 50 ohm
- Frequency Range: 0~4 GHz
- VSWR: Straight type 1.22/3GHz / R/A type 1.30/3GHz
- Dielectric Withstanding Voltage: 1500 V rms
- Working Voltage: 500 V rms
- Center Contact Resistance: 1.5 m (Milliohms max.)
- Outer Contact Resistance: 2.0 m (Milliohms max.)
- Insulation Resistance: 5 10 m (Milliohms min.)
Mechanical Characteristics:
- Coupling: bayonet
- Contact Retention: 6 lbs min.
- Mating Durability: 500 cycles
Environmental Characteristics:
- Environmental Characteristics: Teflon -55oC~+155oC / POM -40oC~+60oC
- Coupling Nut Retention: 100 lbs. min.
- Vibration: MIL-STD-202 Meth. 204
- Corrosion Resistance: MIL-STD-202 Meth. 101
Package Includes: 1 x BNC Connector Video Camera Straight Female For Cable
*Images are for illustration only; actual product may vary.
