Lithium Ion Battery Protection PCB
Protects single Lithium ion batteries with 20A continuous current
- Supported battery type: 7 cells 4.2V Lithium ion battery
- Working current: 20 A
- Static power: <500uA
- Over current threshold: 30 A
- Balancing the locus of control: 4.18±0.03 V
- Overcharge threshold: 4.3±0.05 V
- Overcharge time delay: 75mS
- Overcharge release: 4.1±0.05 V
- Discharge threshold: 2.4±0.08 V
- Discharge delay: 5mS
- Length (mm): 90
- Width (mm): 46
- Height (mm): 8
- Weight (gm): 35
Features:
- Overcharge protection function
- Discharge protection function
- Over current protection function
- Balanced protection function
This Lithium Ion Battery Protection PCB is suitable for electric drills, motors, or aircraft models that require heavy current load.

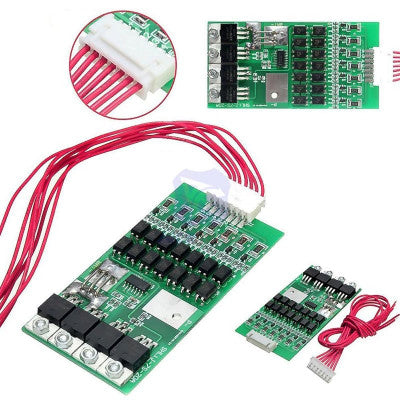

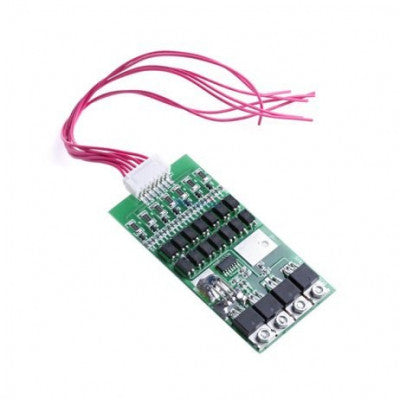

Package Includes: 1 x BMS 7s 20A with Connector for 18650 Battery
Images are for illustration only; actual product may vary.
