BLE-Nano-Board
Main chip ATMEGA328P-MU QFN32 with the latest bootloader (Arduino IDE 1.8.8)
- Main chip: ATMEGA328P-MU QFN32
- Bootloader: Arduino IDE 1.8.8
- Compatibility: Fully compatible with Arduino Nano V3.0
- Size: 48mm x 19mm
- Bluetooth Chip: TI CC2540 BLE (SOC)
- Data Transfer Rate: 1Mbps
- Communication Distance: Up to 50m in open environment
Top Features:
- Compatible with Arduino Nano-V3.0
- Transmission distance up to 50m
- Supports Bluetooth host mode for automatic connections
- Supports AT command for BLE configuration
BLE-Nano-Board is PIN-PIN compatible with Arduino Nano V3.0, featuring a super small volume design of 48mm x 19mm. No soldering is required, and it offers a micro USB port for convenient usage. The board integrates a CC2540 BLE module with the Arduino Nano V3.0, making it ideal for Bluetooth wireless applications.
The board utilizes high-quality materials and technology, with the Bluetooth functionality powered by the TI CC2540 BLE (SOC) chip. It supports a maximum air data transfer rate of 1Mbps and ensures stable performance. The communication distance can reach up to 50m in an open environment.
More convenient for application, the BLE-Nano-Board combines a CC2540 BLE module with the Arduino Nano V3.0 board, simplifying Bluetooth wireless connectivity applications.
Package Includes:

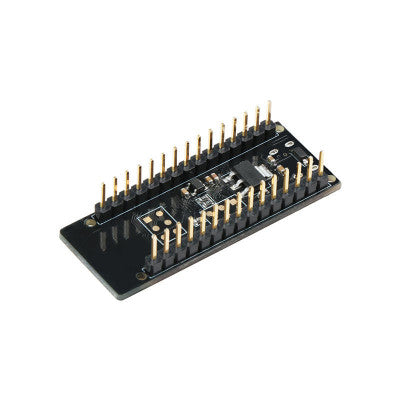

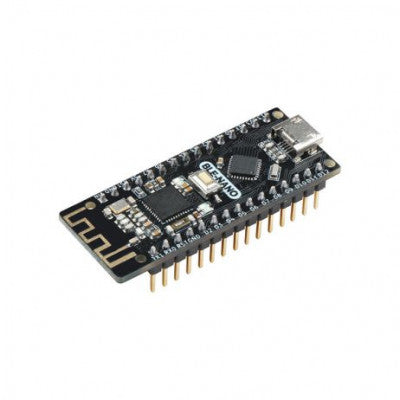

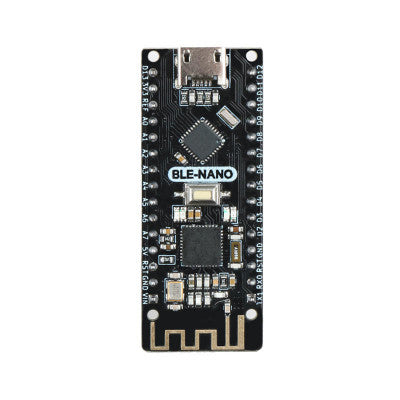

- 1 x BLE Nano CC2540 Integrated Bluetooth Module
Images are for illustration only; actual product may vary.
