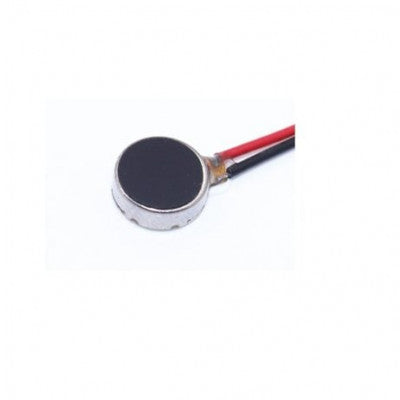

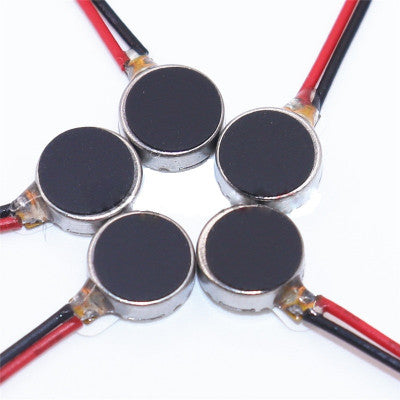

8mm BLDC Coin Vibration Motor
The smallest motor in the world with built-in IC driver and longer lifetime.
- Starting Voltage: 2.5 max VDC
- Starting Current: 185.0 max
- Vibration Force: 0.55g
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +85°C
- Insulation Resistance: 10MW(min)
- Package Includes: 1 x BLDC Coin vibration motor, 8mm Dia., 3mm thickness
Top Features:
- No driver IC required
- 3V DC-rated voltage
- Ultra-compact 8 & 10mm diameter
- RoHS compliant
The 8.0mm diameter, 2.5mm thickness motor is the smallest in the world, with a longer lifetime and built-in IC driver. It operates at DC like a brushed motor, with a vibration force of 0.55g. The brushless DC motor consists of a rotor made of permanent magnet material and a stator with coil winding. It shares similarities with a DC motor in structure and winding wiring.
Available with wires or connectors, this motor is versatile and efficient for various applications.
*Images are for illustration only; actual product may vary.
