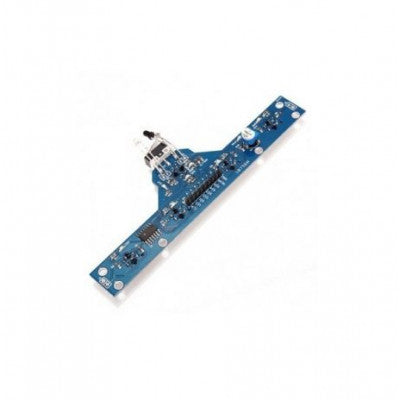

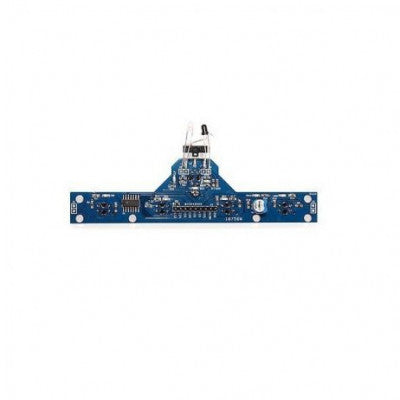

BFD-1000 Five Channel Infrared Tracking Sensor Module
A versatile sensor board for line follower robots
- Input voltage: 3.0-5.5V
- Output Type: Digital output (high and low)
- Detecting distance: 0-4cm (black line sensor) 0-5cm (adjustable distance detection)
- Length (mm): 13
- Width (mm): 5
- Height (mm): 2
- Weight (gm): 12
- Shipment Weight: 0.01 kg
Top Features:
- 5 channel high sensitivity sensor
- High accuracy for tracking black line

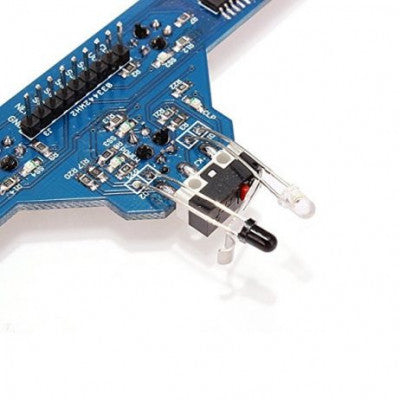

- Distance sensor at the front, distance can be adjusted
- Special touch sensor design for simplified robot design
The BFD-1000 Five Channel Infrared Tracking Sensor Module is designed to meet the day-to-day tracking tasks of line follower robots. With integrated infrared distance and touch detection sensors, this module allows your robot design to easily adapt to various situations.
BFD 1000 is specifically designed for black line (white) XunQu, making it ideal for complex black and white line detection. It features 6 high sensitivity infrared sensors for accurate recognition of black and white lines.
Main functions and features:
- BFD 1000 integrated no.5 high sensitivity tracking sensor: Accurately tracks complex black lines and white lines.

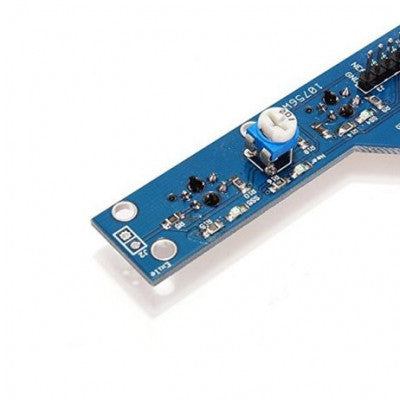

- BFD 1000 integrated infrared Barrie sensor: Escape distance can be regulated through the slide rheostat.
- BFD 1000 touch detection sensor: Specially designed for simpler robot design.
- All sensor output to a digital signal: Conveniently connected with MCU.
- LED lights for all sensor output states: Convenient for debugging.
- Support voltage of 3.0-5.5V: Meets the demand of most systems.
- Tracking range: 0.5mm to 40mm with high sensitivity sensor, no adjustment needed.
Images are for illustration only; actual product may vary.
