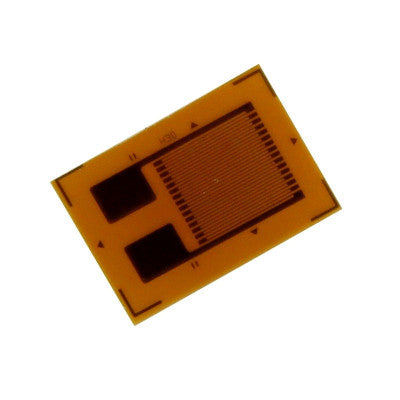

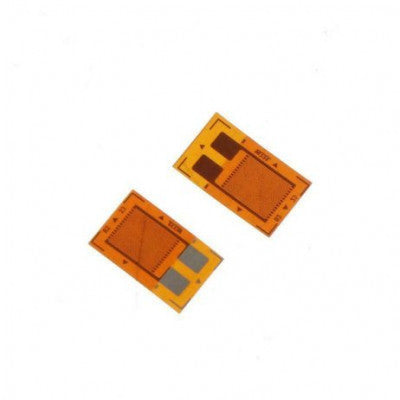

BF350 High Precision Resistance Strain Gauge
A high-precision foil metal strain gauge for pressure and weighing sensors.
- Technical Indexes: BF series
- Strain limit: 2.0%
- Fatigue life: ?1M
- Resistance: 350 ohms
- Contrast: 800:1 (Min) (transmission)
- Sensitivity coefficient: 2.00-2.20
- Using temperature range: -30–+80
- Tolerance of average resistance: ?±0.1%
- Sensitive coefficient dispersion: ?±1%
- Temperature self-compensation coefficient: 9, 11, 16, 23, 27

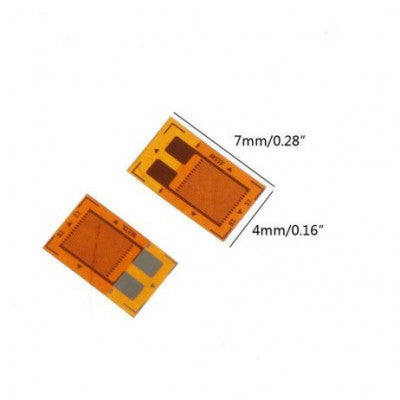

- Size: 7.4mm (length) x 4.4mm (width)
Features:
- High accuracy for precise resistance data
- Good stability for reliable performance
- Modified phenolic backing material and Cuni gate wire
- Fully-closed structure for data transmission safety
The BF350 High Precision Resistance Strain Gauge is designed for 0.02 level manufacturing crafts pressure sensors, ensuring high precision with controlled output deviation within 0.02. It is suitable for directly measuring the strain of components.
Package Includes: 1 x BF350 High Precision Resistance Strain Gauge/Pressure Sensor/Weighing Sensor 350 Ohm
Images are for illustration only; actual product may vary.
