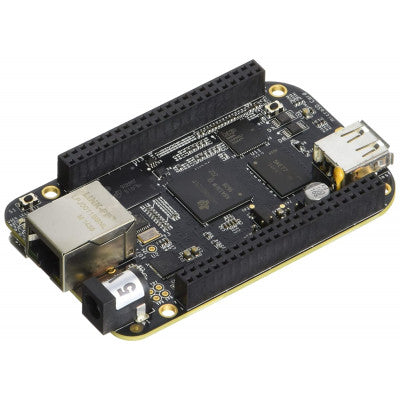

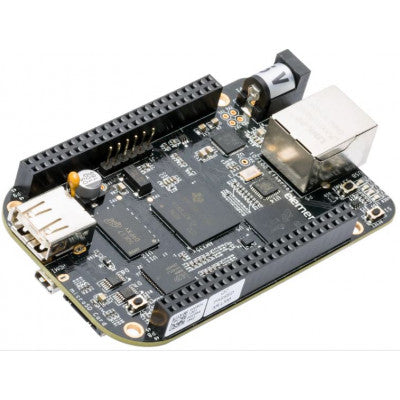

BeagleBone Black (BBONE-BLACK-4G)
A low-cost, high-expansion BeagleBoard with a Sitara™ AM3358 ARM® Cortex™-A8 processor.
- Processor: TI Sitara AM3358AZCZ100, 1GHz, 2000 MIPS
- Memory: SDRAM: 512MB DDR3L 800MHZ, Onboard Flash: 4GB, 8bit Embedded MMC (eMMC)
- Power Management: TPS65217C PMIC with separate LDO
- Connectivity: High-speed USB 2.0 Client port, High-Speed USB 2.0 Host port, Serial Port, 10/100M Ethernet (RJ45)
Top Features:
- 1GHz ARM® Cortex™-A8 processor
- 512MB DDR3L SDRAM
- 4GB Embedded MMC (eMMC) Flash
- High-speed USB 2.0 connectivity
The BeagleBone Black (BBONE-BLACK-4G) features TI's Sitara™ AM3358AZCZ100 microprocessor, based on ARM® Cortex™-A8 core with enhanced image, graphics processing, peripherals, and industrial interface options like EtherCAT and PROFIBUS. It comes with 256Mb x16 DDR3L 4Gb (512MB) SDRAM, 32KB EEPROM, and 4GB embedded MMC (eMMC) Flash as the default boot source. The board supports four boot modes: eMMC boot, microSD boot, serial boot, and USB boot, with a switch for mode selection.

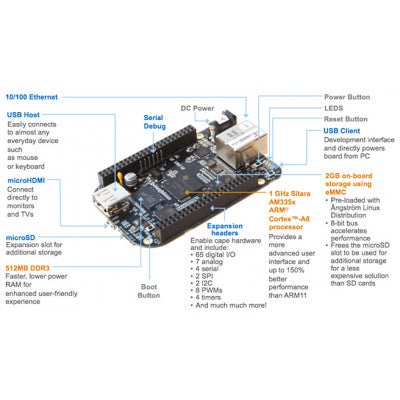

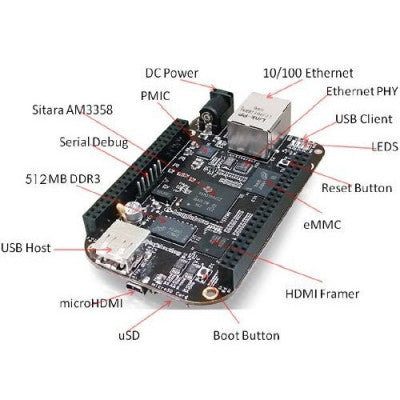

BeagleBone Black Rev. C Features:
- Processor: TI Sitara AM3358AZCZ100, 1GHz, 2000 MIPS, 1 GHz ARM® Cortex™-A8, SGX530 Graphics Engine, Programmable Real-Time Unit Subsystem
- Memory: SDRAM: 512MB DDR3L 800MHZ, Onboard Flash: 4GB, 8bit Embedded MMC (eMMC)
- Power Management: TPS65217C PMIC with separate LDO
- Connectivity: High-speed USB 2.0 Client port, High-Speed USB 2.0 Host port, Serial Port, 10/100M Ethernet (RJ45)
User Input / Output: Reset Button, Boot Button, Power Button, LED power indicator, 4 user configurable LEDs
Video/Audio Interfaces: HDMI D type interface, LCD interface, Stereo audio over HDMI interface
Expansion Interfaces: LCD, UART, eMMC, ADC, I2C, SPI, PWM
Includes: BeagleBone Black Board, miniUSB to USB Type A Cable, Quick Start Guide
* Images are for illustration only; actual product may vary.
