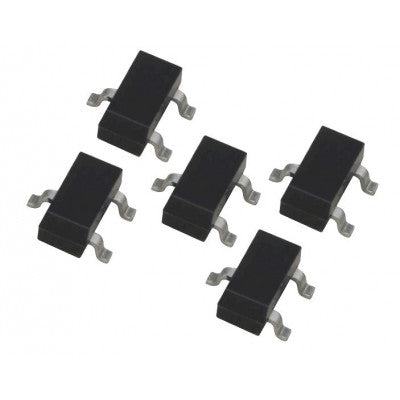

BC857 Transistor
PNP general purpose transistor for switching and amplification applications.
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-3
- Transistor Polarity: PNP
- Configuration: Single
- Collector-Emitter Voltage VCEO Max: 45 V
- Collector-Base Voltage VCBO: 50 V
- Emitter-Base Voltage VEBO: 5 V
- Maximum DC Collector Current: 0.2 A
- Gain Bandwidth Product fT: 100 MHz
- Maximum Operating Temperature: +150°C
- DC Current Gain hFE Max: 125 at 2 mA at 5 V
- DC Collector/Base Gain hFE Min: 125
- Minimum Operating Temperature: -65°C
- Pd - Power Dissipation: 250 mW
Key Features:
- General purpose PNP transistor
- Main applications: switching and amplification
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
* Images are for illustration only; actual product may vary.
