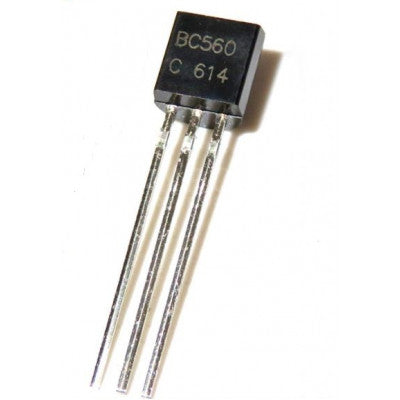

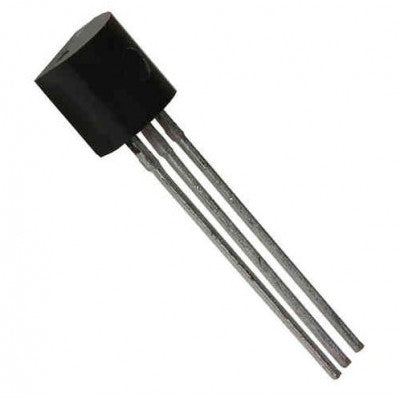

BC560 Semiconductor Transistor
A semiconductor device for amplifying or switching electronic signals with high power handling capability.
- Transistor Polarity: PNP
- Collector-Base Voltage (VCBO): 50V
- Collector-Emitter Voltage (VCEO): 45V
- Emitter-Base Voltage (VEBO): 5V
- Continuous Collector Current (IC): 100mA
- Output Capacitance (Cobo): 6pF
- Transition Frequency (fT): 150MHz
- DC Current Gain (hFE): 110-800
- Operating Temperature Range: -65 - 150°C
- Power Dissipation (PD): 500mW
Features:
- Advanced process technology
- Low error voltage
- Fast switching speed
- Full-voltage operation
BC560 is a semiconductor device used to amplify or switch electronic signals and electrical power. It consists of semiconductor material with at least three terminals for external circuit connection. By applying voltage or current to one terminal pair, the current through another pair is controlled, enabling signal amplification. Transistors like BC560 can amplify output power higher than the input power, making them integral in electronic circuits.
While some transistors are standalone, many are integrated into circuits. For detailed specifications, refer to the BC560 Transistor Datasheet.
*Images are for illustration only; actual product may vary.
