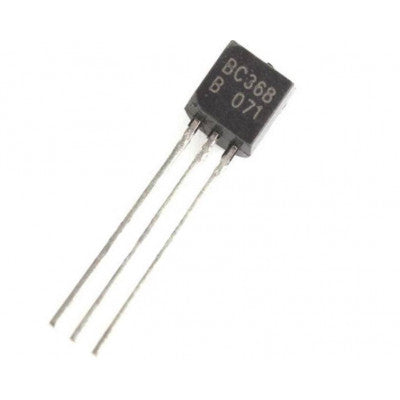

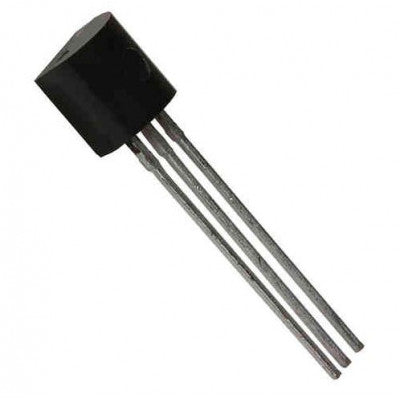

BC368 Transistor
A semiconductor device for amplifying or switching electronic signals.
- Transistor Polarity: NPN
- Collector-Emitter Breakdown Voltage (BVCEO): 20VDC
- Collector-Emitter Voltage (VCEO): 20VDC
- Emitter-Base Voltage (VEBO): 5VDC
- Continuous Collector Current (IC): 1A
- Emitter-Base Breakdown Voltage (VBEBO): 5VDC
- Transition Frequency (fT): 65MHz
- DC Current Gain (hFE): 85-375
- Operating Temperature Range: -55 - 150°C
- Power Dissipation (PD): 1.5W
Features:
- Advanced process technology
- Low error voltage
- Fast switching speed
- Full-voltage operation
BC368 is a semiconductor device with at least three terminals used to amplify or switch electronic signals and power. A voltage or current applied to one terminal controls the current through another pair, enabling signal amplification. It has a high power handling capability and is commonly found in integrated circuits.
