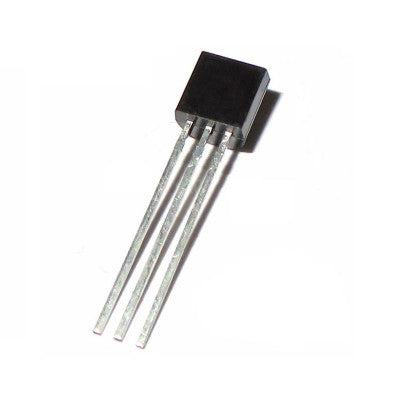

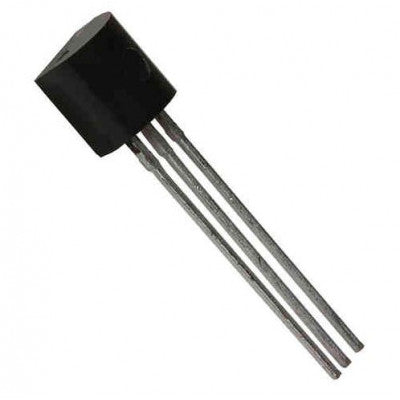

BC308 Semiconductor Device
A semiconductor device used for signal amplification and power switching.
- Transistor Polarity: PNP
- Collector-Emitter Breakdown Voltage (BVCEO): 25V
- Collector-Emitter Voltage (VCEO): 25V
- Emitter-Base Voltage (VEBO): 5V
- Continuous Collector Current (IC): 100mA
- Output Capacitance (Cobo): 6pF
- Transition Frequency (fT): 130MHz
- DC Current Gain (hFE): 120-800
- Operating Temperature Range: -55 - 150°C
- Collector Power Dissipation (PC): 500mW
Features:
- Advanced process technology
- Low error voltage
- Fast switching speed
- Full-voltage operation
BC308 is a semiconductor device utilized for amplifying or switching electronic signals and electrical power. It consists of semiconductor material with at least three terminals for external circuit connection. By applying voltage or current to one pair of terminals, the current through another pair is controlled, allowing signal amplification. Transistors can amplify signals as the output power can surpass the input power. Nowadays, transistors are either individually packaged or embedded in integrated circuits.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
