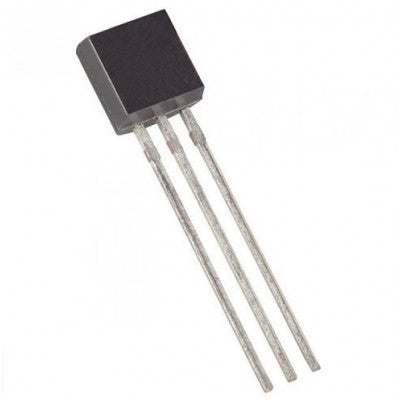

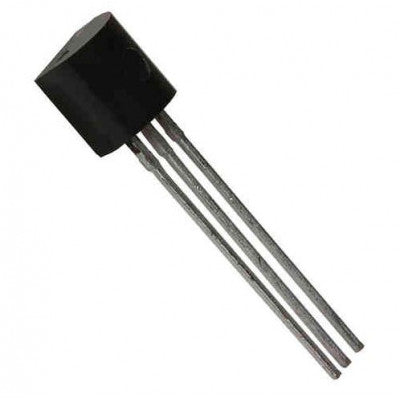

BC212L Semiconductor Transistor
A semiconductor device for amplifying or switching electronic signals and power.
- Transistor Polarity: PNP
- Collector-Base Voltage (VCBO): 60V
- Collector-Emitter Voltage (VCEO): 50V
- Emitter-Base Voltage (VEBO): 5V
- Continuous Collector Current (IC): 100mA
- Output Capacitance (Cobo): 6pF
- Transition Frequency (fT): 280MHz
- DC Current Gain (hFE): 40
- Operating Temperature Range: -55 - 150°C
- Power Dissipation (PD): 350mW
Features:
- Advanced process technology
- Low error voltage
- Fast switching speed
- Full-voltage operation
BC212L is composed of semiconductor material with at least three terminals for connection. It enables signal amplification due to higher controlled power compared to input power. Transistors are commonly found in integrated circuits.
