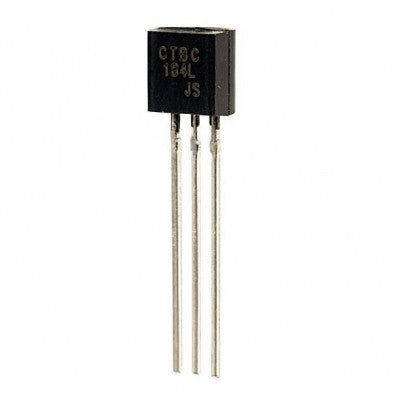

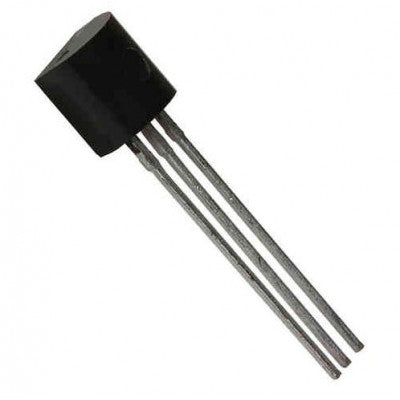

BC184L Semiconductor Transistor
A semiconductor device used for signal amplification and switching
- Transistor Polarity: NPN
- Collector-Base Voltage (VCBO): 45V
- Collector-Emitter Voltage (VCEO): 30V
- Emitter-Base Voltage (VEBO): 5V
- Continuous Collector Current (IC): 500mA
- Output Capacitance (Cobo): 5pF
- Transition Frequency (fT): 150MHz
- DC Current Gain (hFE): 100
- Operating Temperature Range: -55 - 150°C
- Collector Dissipation (PC): 350mW
Features:
- Advanced process technology
- Low error voltage
- Fast switching speed
- Full-voltage operation
BC184L is a semiconductor device with at least three terminals designed for amplifying or switching electronic signals and power. The transistor's terminals allow control over the current flow, enabling signal amplification as the output power can exceed the input power. While some transistors are individually packaged, many are integrated into circuits for various applications.
For more details or bulk pricing, contact our sales team at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
