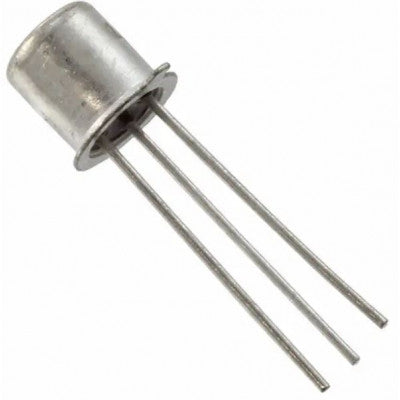

BC108 Semiconductor Device
A semiconductor device used for amplifying or switching electronic signals and power.
- Transistor Polarity: NPN
- Collector-Base Voltage (VCBO): 30V
- Collector-Emitter Voltage (VCEO): 25V
- Emitter-Base Voltage (VEBO): 5V
- Continuous Collector Current (IC): 0.2A
- Output Capacitance (Cobo): 4.5pF
- Transition Frequency (fT): 150MHz
- DC Current Gain (hFE): 110-800
- Operating Temperature Range: -65 - 200°C
- Power Dissipation (PD): 1W
Features:
- Metal TO-18 can package
- Advanced process technology
- Low error voltage
- Fast switching speed
The BC108 transistor is composed of semiconductor material with three terminals for connecting to an external circuit. By controlling the current through one pair of terminals with a voltage or current applied to another pair, it can amplify signals. While some transistors are individually packaged, many are embedded in integrated circuits.
For more details or bulk pricing, contact our sales team at sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
