BattleSwitch Radio-Controlled 10A Relay
The larger, 10A version of the BattleSwitch relay switch for hobby radio control gear.
- Switching Voltage (VAC): 120 @ 12A, 240 @ 10A
- Switching Voltage (VDC): 28 @ 10A
- Cable Length (cm): 30
- Length (mm): 32
- Width (mm): 32
- Height (mm): 18
- Weight (gm): 18
Top Features:
- 30mA typical draw from the receiver

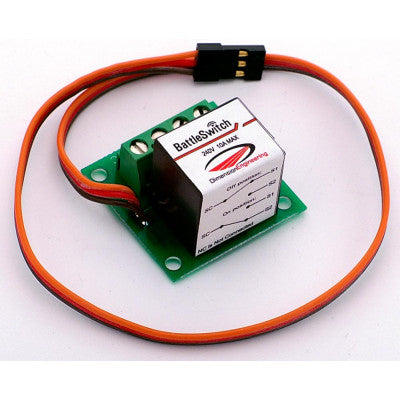

- 12-inch servo pigtail
- Purposefully designed for RC Applications
- Can withstand the maximum current of 10A
BattleSwitch is a relay switch that can be controlled via hobby radio control gear. It offers full electrical isolation from your receiver electronics, allowing you to control applications with voltage levels as high as 240VAC without needing to understand microcontroller logic levels or transistors.

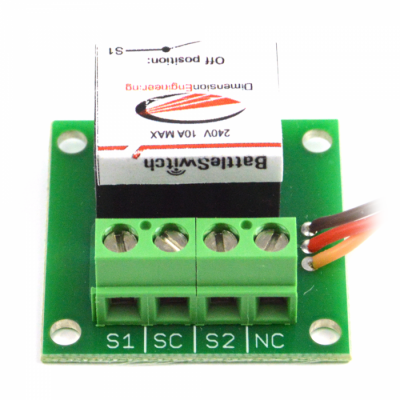

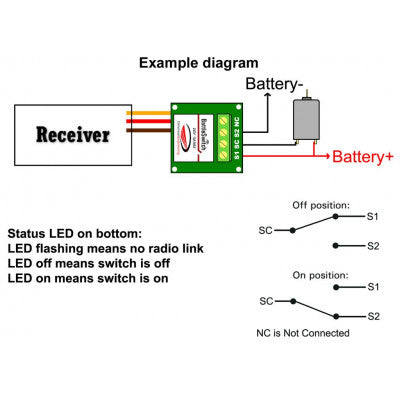

It plugs into a standard hobby radio control receiver and features wear-resistant screw terminals for easy connection of the load you want to toggle. The relay is a single pole double throw switch with a typical lifetime of 100,000 switching cycles.

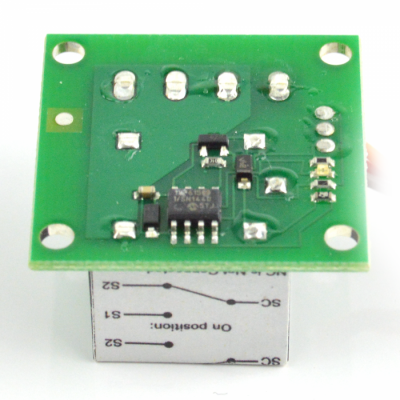

The status LED on the bottom indicates the relay switch status and the strength of your radio link. Applications range from RC combat weapons control to home automation and automotive electronics control.
Applications:
- Powerful auxiliary weapons control in RC combat
- Glow plugs control in RC nitro vehicles
- High powered lighting systems control for large RC aircraft, boats, cars
- Domestic appliances and home automation control
- Non-critical automotive electronics control such as glow wire
Package Includes:
- 1 x BattleSwitch Radio-Controlled 10A Relay Module
- 1 x Small User Manual
*Images are for illustration only; actual product may vary.
