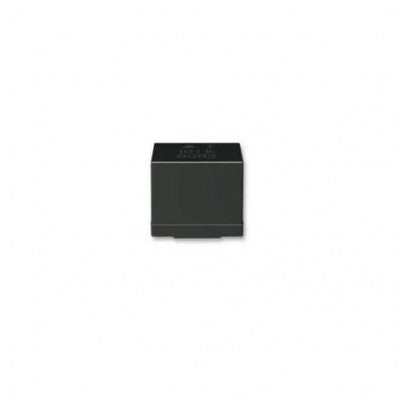

B82442T1105K000 Wirewound Inductor
AEC-Q200, 1 mH, 9.5 ohm, 1.8 MHz, 150 mA, 2220 [5650 Metric]
- Inductance: 1mH
- DC Resistance Max: 9.5ohm
- Self Resonant Frequency: 1.8MHz
- DC Current Rating: 150mA
- Inductor Case / Package: 2220 [5650 Metric]
- Inductor Case Style: 2220 [5650 Metric]
- Product Range: B82442T
- Inductance Tolerance: 10%
- Inductor Construction: Unshielded
- Core Material: Ferrite
Features:
- 1 mH inductance
- 9.5 ohm DC resistance
- 1.8 MHz self resonant frequency
- 150 mA DC current rating
Note: For more technical details, refer to the datasheet in the attachments.
Images are for illustration only; actual product may vary.
