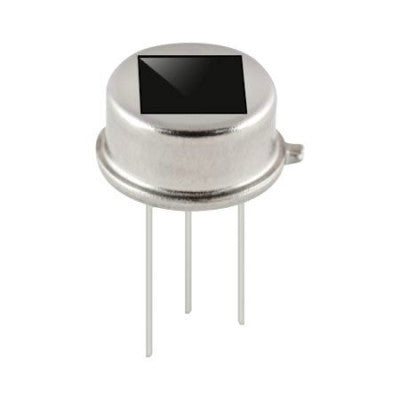

B2X2 4 Elements Infrared Motion Analog PIR Sensor
A versatile PIR sensor widely used for ceiling lights and intrusion detectors.
- Window Size: 4*4mm
- IR Receiving Electrode: 1.1 x 1.1mm 4 elements
- Encapsulation Type: TO-5
- Spectral Response: 514 nm
- Transmittance: 75%
- Output Signal [Vp-p]: 3500mV
- Sensitivity: 3300V/W
- Detectivity (D*): 1.4 x 10^8 cmHz^(1/2)/W
- Noise [Vp-p]: <100mV
- Output Balance: <10%
- Offset Voltage: 0.3~1.2V
- Supply Voltage: 3~15V
- Operating Temp: -30~70°C
- Storage Temp: -40~80°C
- Shipment Weight: 0.01 kg
- Shipment Dimensions: 5 x 3 x 1 cm
Features:
- Quad Elements
- Same horizontal and vertical detection angles
- Slight movement can be detectable
- Low power Consumption
B2X2 is a quad element type product with the same horizontal and vertical detection angles. It is widely used in the ceiling light. The B2X2 PIR sensor with the same horizontal and vertical detection angles is widely used for ceiling light and intrusion detector. PIR sensors allow you to sense motion, almost always used to detect whether a human has moved in or out of the sensor's range. They are small, inexpensive, low-power, easy to use, and don't wear out. They are often referred to as PIR, Passive Infrared, Pyroelectric, or IR motion sensors.
Applications:
- Household or other appliances
- Start air conditioning or turn on the lights
- Digital photo frame
- Automatic control for indoor, corridor, and stairs lights, etc.
- Lighting appliances
* Images are for illustration only; actual product may vary.
