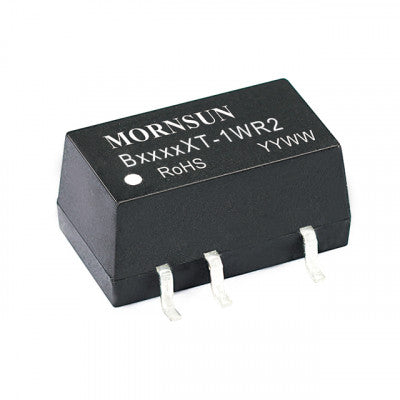

B2424XT-1WR2 Mornsun 24V to 24V DC-DC Converter 1W Power Supply Module
Designed for applications requiring isolated voltage in distributed power supply systems.
- Model Number: B2424XT-1WR2
- Input Voltage range: 21.6-26.4 Vdc
- Nominal voltage: 24 Vdc
- Output voltage: 24V
- Output current: 42/4(mA)
- Wattage: 1W
- Isolation Voltage: 1.5 kVdc
- Package: Compact SMD
- Size: 12.70mm (Length) X 11.20mm (Width) X 7.25mm (Height)
- Weight: 1.6gm
Top Features:
- UL and CE compliant
- Continuous short-circuit protection
- Operating temperature range: -40°C to +105°C
- Compact SMD package
This Mornsun DC-DC Converter is suitable for applications where stable input power supply voltage is required, isolation between input and output is necessary, and output voltage regulation is not strictly required. It is ideal for digit circuit conditions, normal low-frequency artificial circuit conditions, relay drive circuit conditions, and more.
Equipped with a range of features including a compact SMD package, high efficiency, and an operating temperature of -40°C to +105°C, this converter meets industry standards such as IEC62368, UL60950, and EN60950.
Package Includes: 1 x B2424XT-1WR2 Mornsun 24V to 24V DC-DC Converter 1W Power Supply Module - Compact SMD Package
Related Documents: Mornsun B2424XT-1WR2 Datasheet
* Images are for illustration only; actual product may vary.
