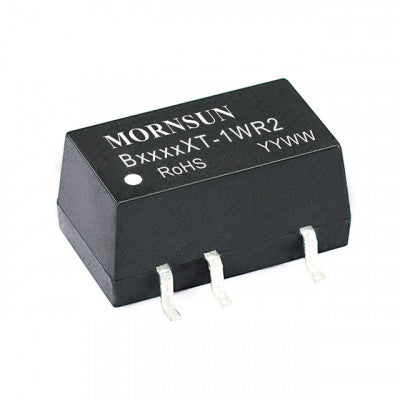

B2405XT-1WR2 Mornsun 24V to 5V DC-DC Converter 1W Power Supply Module
Designed for applications requiring isolated voltage in distributed power supply systems.
- Model Number: B2405XT-1WR2
- Input Voltage range: 21.6-26.4 Vdc
- Nominal voltage: 24 Vdc
- Output voltage: 5V
- Output current: 200/20(mA)
- Wattage: 1W
- Isolation Voltage: 1.5 kVdc
- Package: Compact SMD
- Size: 12.70mm (Length) X 11.20mm (Width) X 7.25mm (Height)
- Weight: 1.6gm
Features:
- Meet UL, CE requirements
- Continuous short-circuit protection
- Operating ambient temperature range: -40°C to +105°C
- Compact SMD package
This Mornsun 24V to 5V DC-DC Converter is suitable for applications where:
- Spec name: Where the voltage of the input power supply is stable (voltage variation: ±10%Vin)
- Spec name: Where isolation between input and output is necessary (isolation voltage ?1500VDC)
- Spec name: Where the output voltage regulation and the ripple & noise of the output voltage is not strictly required
- Spec name: Typical application: digit circuit condition; normal low-frequency artificial circuit condition; relay drive circuit condition, etc
Equipped with numerous features, including a SMD package, high efficiency, and an operating temperature of -40°C to +105°C.
Package Includes:
- 1 x B2405XT-1WR2 Mornsun 24V to 5V DC-DC Converter 1W Power Supply Module - Compact SMD Package
Related Documents: Mornsun B2405XT-1WR2 Datasheet
Images are for illustration only; actual product may vary.
