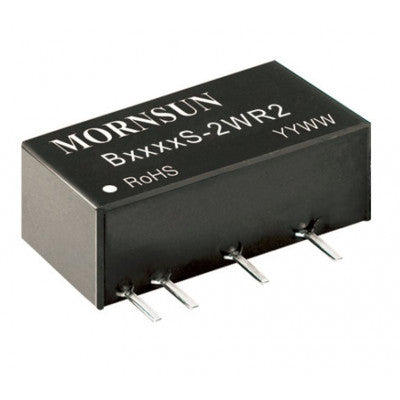

B1212S-2WR2 Mornsun 12V to 12V DC-DC Converter 2W Power Supply Module
Designed for distributed power supply systems with high efficiency and I/O isolation
- I/p Voltage range: 10.8-13.2
- Nominal voltage: 12 Vdc
- O/p voltage: 12V
- O/p current: 167/17(mA)
- Wattage: 2W
- Isolation: 1.5kVdc
- Package: SIP
Features:
- High power density
- High efficiency up to 86%
- Operating ambient temperature range: -40°C to +105°C
- No external components required
B1212S-2WR2 series is designed for use in distributed power supply systems and especially suitable in applications such as pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits, where: 1. The voltage of the input power supply is relatively stable with a variation of ±10%Vin or less; 2. An input to output isolation voltage of up to 1500VDC is necessary; 3. The requirement for a tight output regulation is not as strict.
Industry standard pin-out with I/O isolation test voltage of 1.5k VDC. IEC60950/UL60950/EN60950 Approved.
Package Includes:
- 1 x B1212S-2WR2 Mornsun 12V to 12V DC-DC Converter 2W Power Supply Module - Miniature SIP Package
Images are for illustration only; actual product may vary.
