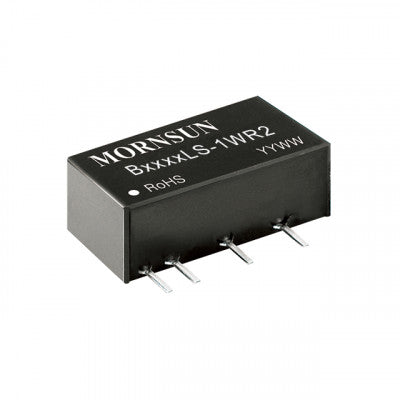

B1212LS-1WR2 Mornsun 12V to 12V DC-DC Converter 1W Power Supply Module
Specially designed for applications requiring isolated voltage in distributed power supply systems.
- Model Number: B1212LS-1WR2
- Input Voltage range: 10.8-13.2 Vdc
- Nominal voltage: 12 Vdc
- Output voltage: 12V
- Output current: 84/9(mA)
- Wattage: 1W
- Isolation Voltage: 1.5 kVdc
- Package: Ultra compact SIP
- Size: 19.50mm (Length) X 6.00mm (Width) X 9.30mm (Height)
- Weight: 2.4gm
Features:
- Meets UL, CE requirements
- High power density
- High efficiency up to 80%
- Operating ambient temperature range: -40°C to +105°C
This Mornsun 12V to 12V DC-DC Converter 1W Power Supply Module is equipped with numerous features, including an ultra-compact SIP package, high efficiency, and an operating temperature of -40°C to +105°C. It meets UL and CE requirements, has high power density, and is approved for use in various applications.
Package Includes: 1 x B1212LS-1WR2 Mornsun 12V to 12V DC-DC Converter 1W Power Supply Module - Ultra Compact SIP Package
Related Documents: Mornsun B1212LS-1WR2 Datasheet
Images are for illustration only; actual product may vary.
