B0524S-1WR2 Series
Designed for distributed power supply systems with 1500VDC isolation.
- I/p Voltage range: 4.5-5.5
- Nominal voltage: 5Vdc
- O/p voltage: 24V
- O/p current: 42/4mA
- Wattage: 1W
- Isolation: 1.5K VDC/min, 3K VDC/1s
- Package: SIP
Top Features:
- Efficiency up to 82%
- Miniature SIP/DIP Package
- 1500VDC Isolation
- Operating Temperature Range: -40°C ~ +105°C
The B0524S-1WR2 series is designed for use in distributed power supply systems and is especially suitable for applications such as pure digital circuits, low-frequency analog circuits, relay-driven circuits, and data switching circuits. It is ideal where the input power supply voltage is relatively stable with a variation of ±10%Vin or less, and an input to output isolation voltage of up to 1500VDC is necessary. The module meets the requirement for tight output regulation and low ripple & noise.
No external components are required for operation, and the module can be easily mounted on a PCB. It features an industry-standard pinout for convenient integration into various systems.
Package Includes:

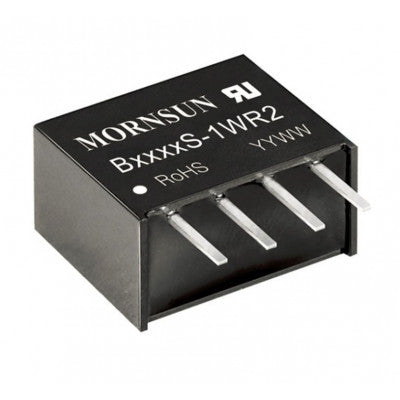

- 1 x B0524S-1WR2 Mornsun 5V to 24V DC-DC Converter 1W Power Supply Module - Miniature SIP/DIP Package
Images are for illustration only; actual product may vary.
