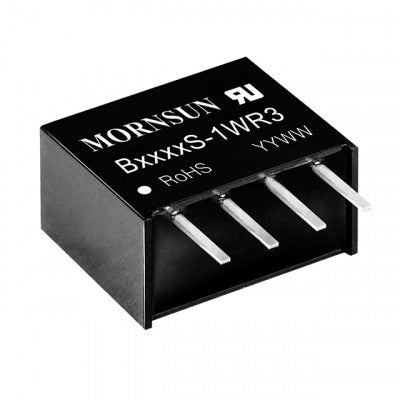

B0505S-1WR3 Mornsun 5V to 5V DC-DC Converter 1W Power Supply Module
A compact and efficient power supply module for isolated voltage applications.
- Model Number: B0503S-1WR3
- Input Voltage range: 4.5-5.5 Vdc
- Nominal voltage: 5 Vdc
- Output voltage: 5V
- Output current: 200/20(mA)
- Wattage: 1W
- Isolation Voltage: 1.5 kVdc/min, 3KVdc/1s
- Package: SIP
- Size: 11.60mm (Length) X 6.00mm (Width) X 10.16mm (Height)
- Weight: 1.3gm
Features:
- Meets UL, CE requirements
- Continuous short-circuit protection
- No-load input current as low as 5mA
- Operating temperature range: -40°C to +105°C
This Mornsun 5V to 5V DC-DC Converter 1W Power Supply Module is designed for applications requiring isolated voltage in distributed power supply systems. It is suitable for pure digital circuits, low-frequency analog circuits, relay-driven circuits, and data switching circuits. Equipped with a compact SIP package, high efficiency, and an operating temperature range of -40°C to +105°C.
Package Includes: 1 x B0505S-1WR3 Mornsun 5V to 5V DC-DC Converter 1W Power Supply Module SIP Package
Related Documents: Mornsun B0505S-1WR3 Datasheet
* Images are for illustration only; actual product may vary.
