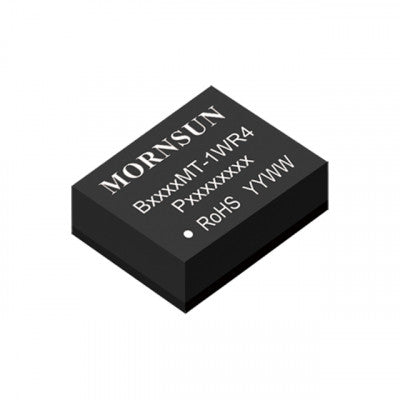

B0505MT-1WR4 Mornsun 5V to 5V DC-DC Converter 1W Power Supply Module
Specially designed for applications requiring isolated voltage in distributed power supply systems.
- Model Number: B0505MT-1WR4
- Input Voltage range: 4.5-5.5 Vdc
- Nominal voltage: 5 Vdc
- Output voltage: 5V
- Output current: 200/20(mA)
- Wattage: 1W
- Isolation Voltage: 3 kVdc
- Package: Ultra-Thin DFN Package
- Size: 9.00mm (Length) X 7.00mm (Width) X 3.10mm (Height)
- Weight: 0.5gm
Top Features:
- Meets UL, CE, CB requirements
- Ultra-small, ultra-thin DFN package (9.00 x 7.00 x 3.10mm)
- Operating ambient temperature range: -40°C to +125°C
- High efficiency up to 85%
This Mornsun 5V to 5V DC-DC Converter 1W Power Supply Module is ideal for digital circuits, low frequency analog circuits, relay-driven circuits, and data switching circuits. Equipped with a subminiature thin DFN package, high efficiency, and an operating temperature of -40°C to +125°C, it ensures reliable performance in various applications.
Package Includes: 1 x B0505MT-1WR4 Mornsun 5V to 5V DC-DC Converter 1W Power Supply Module
Related Documents: Mornsun B0505MT-1WR4 Datasheet
Images are for illustration only; actual product may vary.
