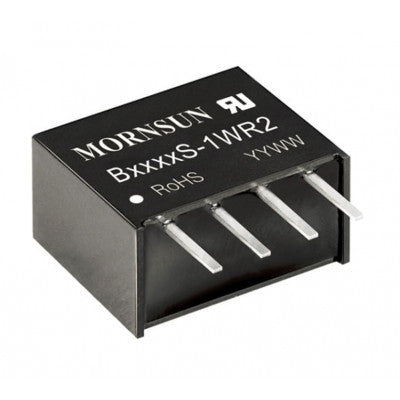

B0305S-1WR2 Mornsun 3V to 5V DC-DC Converter 1W Power Supply Module
Designed for distributed power supply systems with high efficiency and compact design.
- I/p Voltage range: 2.97-3.63vdc
- Nominal voltage: 3Vdc
- O/p voltage: 5V
- O/p current: 200/20(mA)
- Wattage: 1W
- Isolation: 1.5kVdc
- Package: SIP
Features:
- Continuous short-circuit protection
- High efficiency up to 80%
- Operating ambient temperature -40°C to +105°C
- Compact SIP/DIP package
The B0305S-1WR2 series is designed for use in distributed power supply systems and is especially suitable for applications such as pure digital circuits, low-frequency analog circuits, relay-driven circuits, and data switching circuits. It is ideal where the input power supply voltage is relatively stable with a variation of ±10%Vin or less, and an input to output isolation voltage of up to 1500VDC is necessary. The requirement for tight line and load regulation is not as strict.
Package Includes:
1 x B0305S-1WR2 Mornsun 3V to 5V DC-DC Converter 1W Power Supply Module - Compact SIP/DIP Package
* Images are for illustration only; actual product may vary.
