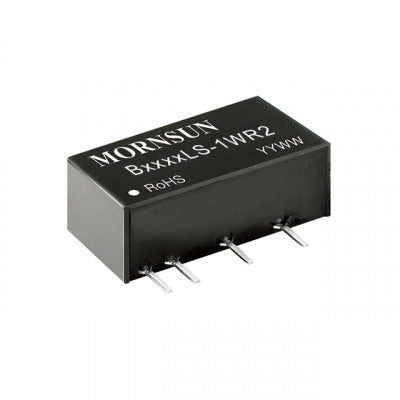

B0303LS-1WR2 Mornsun 3.3V to 3.3V DC-DC Converter 1W Power Supply Module
Specially designed for applications requiring isolated voltage in distributed power supply systems.
- Model Number: B0303LS-1WR2
- Input Voltage range: 2.97-3.63
- Nominal voltage: 3.3 Vdc
- Output voltage: +3.3V
- Output current: +303/5(mA)
- Wattage: 1W
- Isolation Voltage: 1.5 kVdc
- Package: Ultra compact SIP
- Size: 19.50mm (Length) X 6.00mm (Width) X 9.30mm (Height)
- Weight: 2.4gm
Features:
- Meets UL, CE requirements
- High power density
- High efficiency up to 80%
- Operating ambient temperature range: -40°C to +105°C
This Mornsun 3.3V to 3.3V DC-DC Converter 1W Power Supply Module is equipped with numerous features, including an ultra-compact SIP package, high efficiency, and an operating temperature of -40°C to +105°C. It meets UL, CE requirements and has high power density. The module has an industry-standard pin-out and an I/O isolation test voltage of 1.5k VDC. It is UL60950/EN60950 Approved and meets EN62368 standards.
Package Includes:
- 1 x B0303LS-1WR2 Mornsun 3.3V to 3.3V DC-DC Converter 1W Power Supply Module
Related Documents: Mornsun B0303LS-1WR2 Datasheet
Images are for illustration only; actual product may vary.
