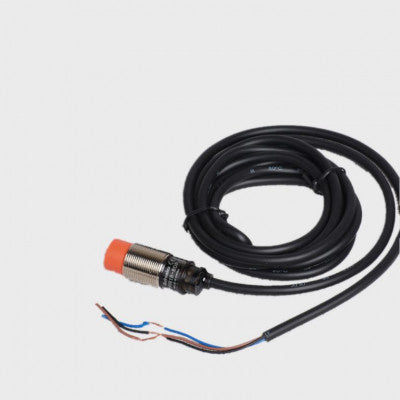

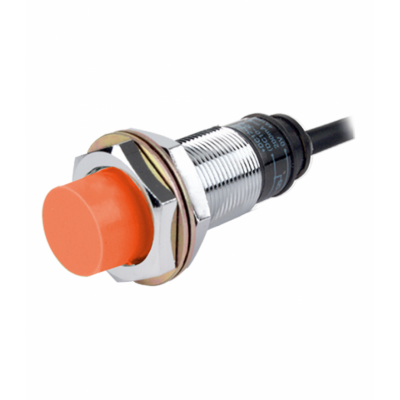

Autonics PR18-8DP DC 10-30V 8mm M18 Inductive Proximity Sensor PNP-NO Series
Enhanced noise resistance with dedicated IC, suitable for various applications.
- Model: Autonics M18 PNP-NO
- Operating Voltage (VDC): 10 ~ 30
- Detection Distance (mm): 8
- Outer Thread Size: M18
- Object Type: Inductive
- Output Type: PNP Normally Open Three-line
- Installation Type: Non-Flush (Unshielded)
- Max Output Current (mA): 200
Features:
- Improved noise resistance with dedicated IC.
- Built-in reverse polarity protection circuit (DC 3-wire type).
- Built-in surge protection circuit.
- Built-in overcurrent protection circuit (DC type).
This inductive proximity sensor generates an electromagnetic field to sense metal objects. It features built-in sensitivity volume and provides no-touch object detection. Inductive sensors use a magnetic field to detect objects. Capacitive sensors use an electric field. In order to be sensed by an inductive sensor, an object must be conductive. This limits suitable targets to metal objects (for the most part). In order to be sensed by a capacitive sensor, the target doesn't need to be conductive. A capacitive sensor will react to an object acting as a dielectric material as well as a conductive object. This makes metal and non-metal objects suitable targets.
Package Includes:
- 1 x Autonics PR18-8DP DC 10-30V 8mm M18 Inductive Proximity Sensor PNP-NO
Images are for illustration only; actual product may vary.
