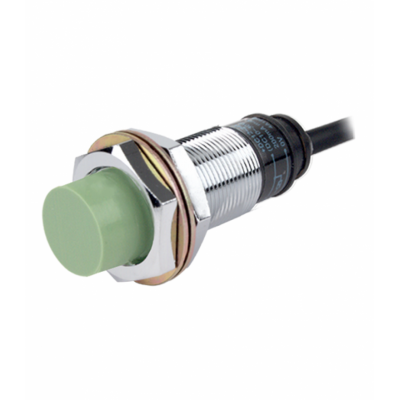

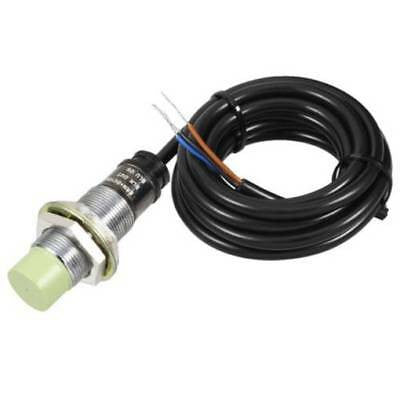

Autonics PR18-8DN DC 10-30V 8mm M18 Inductive Proximity Sensor NPN-NO (Unshielded)
Enhanced noise resistance with dedicated IC for superior performance.
- Model: Autonics M18 NPN-NO
- Operating Voltage (VDC): 10 ~ 30
- Detection Distance (mm): 8
- Outer Thread Size: M18
- Object Type: Inductive
- Output Type: NPN Normally Open Three-line
- Installation Type: Non-Flush (Unshielded)
- Max Output Current (mA): 200
- Setting Distance (mm): 0 ~ 5.6
- Insulation Resistance (M): 50
- Response Frequency: 350 Hz
- Operating Temperature (C): -25 to 70
- Storage condition: -30 to 80C
- Cable Dimensions: 5, 3-Wire, 2 Meter
- Weight (gm): 85
Features:
- Improved noise resistance with dedicated IC.
- Built-in reverse polarity protection circuit.
- Built-in surge protection circuit.
- Built-in overcurrent protection circuit.
This inductive proximity sensor by Autonics PR18-8DN operates by generating an electromagnetic field to detect metal objects. It offers built-in sensitivity adjustment and enables no-touch object detection. Inductive sensors utilize a magnetic field for object detection, limiting suitable targets primarily to metal objects. On the other hand, capacitive sensors can detect non-conductive objects acting as dielectric materials.
The Autonics PR18-8DN series is designed for a wide range of applications requiring proximity sensors due to its various size options and sensing distances. It ensures a long life cycle, high reliability, and straightforward operation. The sensor also features an IP67 protection structure according to IEC standards, making it replaceable for micro switches and limit switches.
Package Includes:
- 1 x Autonics PR18-8DN DC10-30V 8mm M18 Inductive Proximity Sensor NPN-NO (Unshielded)
Images are for illustration only; actual product may vary.
