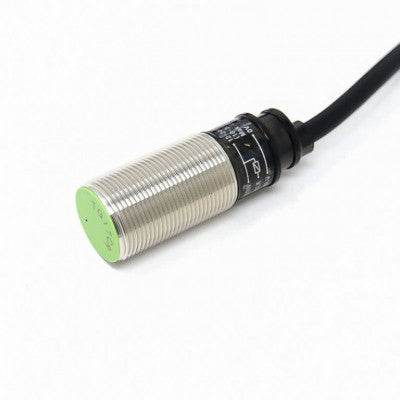

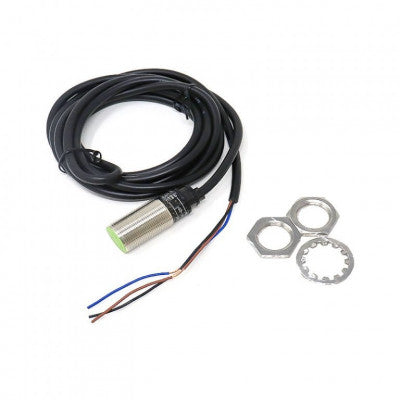

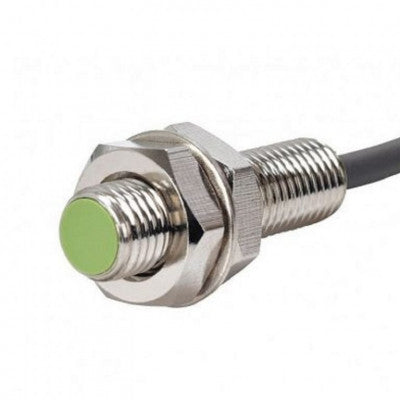

Autonics PR18-5DN DC 10-30V 5mm M18 Inductive Proximity Sensor NPN-NO (Unshielded)
Enhanced noise resistance with dedicated IC for various applications.
- Model: Autonics M18 NPN-NO
- Operating Voltage (VDC): 10 ~ 30
- Detection Distance (mm): 5
- Outer Thread Size: M18
- Object Type: Inductive
- Output Type: NPN Normally Open Three-line
- Installation Type: Non-Flush (Unshielded)
- Max Output Current (mA): 200
- Setting Distance (mm): 0 to 3.5
- Response Frequency: 500Hz
- Insulation Resistance (M): 50
- Operating Temperature (C): -25 to 70
- Storage condition: -30 to 80C
- Cable Dimensions: 5, 3-Wire, 2 Meter
- Weight (gm): 118
Features:
- Improved noise resistance with dedicated IC.
- Built-in reverse polarity protection circuit.
- Surge protection circuit included.
- Overcurrent protection circuit for DC type.
This inductive proximity sensor by Autonics PR18-5DN operates on a 10-30V DC power supply and has a detection distance of 5mm. It is designed for non-flush installation and is suitable for inductive object detection. The sensor offers a high level of reliability and a long life cycle, making it a versatile choice for various applications.
Inductive sensors like this one generate an electromagnetic field to detect metal objects, providing a no-touch detection method. They are ideal for use with conductive objects, while capacitive sensors can detect non-conductive materials as well. This sensor is IP67 rated, ensuring protection against dust and water ingress.
* Images are for illustration only; actual product may vary.
