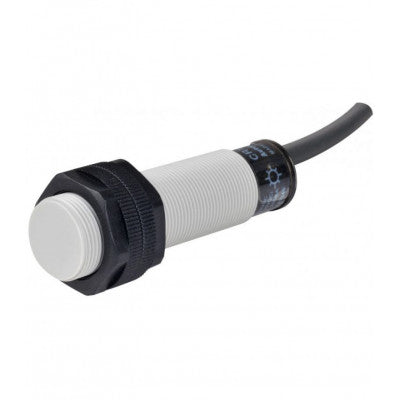

Autonics CR18-8DP DC 10-30V 8mm M18 Capacitive Proximity Sensor PNP-NO (Shielded)
Capacitive proximity sensor for detecting metallic and non-metallic targets without physical contact.
- Model: Autonics CR18-8DP PNP-NO
- Operating Voltage (VDC): 10 ~ 30
- Detection Distance (mm): 8
- Outer Thread Size: M18
- Object Type: Capacitive
- Output Type: PNP Normally Open Three-line
- Installation Type: Flush (Shielded)
- Max Output Current (mA): 200
- Setting Distance (mm): 0 ~ 5.6
- Insulation Resistance (M): 50
- Operating Temperature (C): -25 to 70
- Storage condition: -30 to 80C
- Cable Dimensions: 4, 3-Wire, 2 Meter
- Response Frequency: 50Hz
- Weight (gm): 88
Features:
- Detect various materials including metal, iron, stone, plastic, water, and grain.
- Long life cycle and reliable performance.
- Built-in surge protection circuit, reverse polarity protection circuit (DC types).
- Built-in surge protection circuit (AC types).
Capacitive proximity sensors can detect metallic and non-metallic targets like paper, wood, plastic, glass, powder, and liquid without physical contact. The sensor works on the capacitor principle where the capacitance increases as the object comes close to the plate. The detector circuit switches the output based on the amplitude output from the oscillator. Ideal for level detection and position control.
Advantages: It can detect both metallic and non-metallic targets. Good stability. High Speed. Good Resolution. Low cost.
Package Includes: 1 x Autonics CR18-8DP DC 10-30V 8mm M18 Capacitive Proximity Sensor PNP-NO (Shielded).
* Images are for illustration only; actual product may vary.
