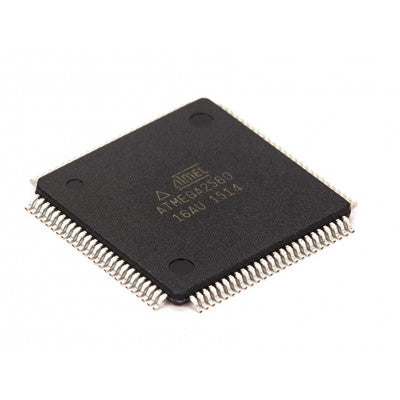

ATMEGA2560 Microcontroller
High-performance, low-power 8-bit AVR microcontroller with advanced RISC architecture
- Program Memory Type: Flash
- Program Memory Size (KB): 256
- CPU Speed (MIPS/DMIPS): 16
- SRAM (B): 8,192
- Data EEPROM/HEF (bytes): 4096
- Digital Communication Peripherals: 4-UART, 5-SPI, 1-I2C
- Capture/Compare/PWM Peripherals: 4 Input Capture, 4 CCP, 16PWM
- Timers: 2 x 8-bit, 4 x 16-bit
- Number of Comparators: 1
- Temperature Range (°C): -40 to 85
- Operating Voltage Range (V): 1.8 to 5.5
- Pin Count: 100
Top Features:
- 256KB ISP Flash Memory
- 8KB SRAM, 4KB EEPROM
- 86 General Purpose I/O Lines
- 32 General Purpose Working Registers
The ATMEGA2560 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. It achieves throughputs approaching 1 MIPS per MHz, optimizing power consumption versus processing speed. The device features 6 flexible timer/counters, 4 USARTs, 16-channel 10-bit A/D converter, and a JTAG interface for on-chip debugging.
Additional specifications include a write/erase cycles of 10,000 Flash/100,000 EEPROM, optional boot code section, and various power-saving modes. The microcontroller operates between 4.5-5.5 volts with a throughput of 16 MIPS at 16 MHz.
The ATMEGA2560 offers extensive peripheral features including timers/counters, PWM channels, ADC, USARTs, SPI interface, watchdog timer, analog comparator, and more. It is suitable for industrial applications with a temperature range of -40?C to 85?C.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
