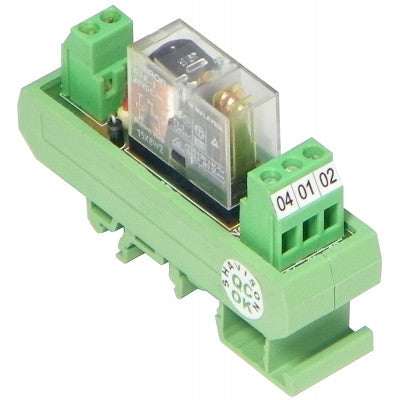

AS361-24V-OE
1 C/O Modules with Jumpers Series AS361
- Type: 1 C/O Modules with Jumpers
- Part Number: AS361-24V-OE
- Mount: Din Rail
- Nominal Coil Voltage: 24VDC
- Number of Relays: 1
- Warranty: 1 Year
Features
- LED & Freewheeling diode across coil
- Jumpers for Coil Looping
- Reverse Polarity blocking diode
AS361-24V-OE is directly soldered with LED & Free wheeling diode across coil. These can be done with the jumpers supplied with current including LED current.
Detailed Specifications
- Contact configuration: 1C/O
- Number of channels: 1, 2, 4, 8, 12, 16
- Must operate voltage: 21VDC
- Must release voltage: 6.2VDC
- Max coil voltage: 26.4VDC
- Set time: 15 ms
- Reset time: 20 ms
- Relay contact rating: 10A@28VDC/230VAC
On board contact rating: 5A@28VDC/230VAC
Coil termination type: Screw type
Contact termination type: Screw type
Operating ambient: 0 - 55°C
Dimensions (WxHxD): 24 x 80 x 70 mm
Weight: 70 gm
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
