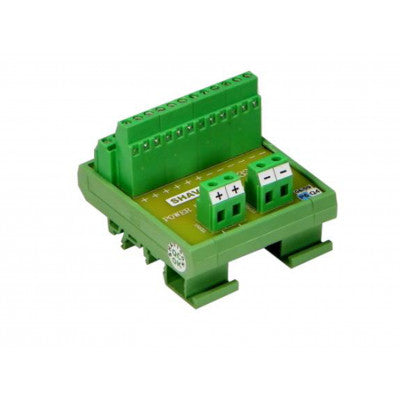

AS333 DC Power Distribution Board
A convenient solution for saving power wiring with multiple channel power supply
- Input Current Rating: 20A
- Output Current Rating: 5A
- Series: AS
- Part Number: AS333
- Voltage Rating: 100VDC / 230VAC
- Number of Channels: 12
- Warranty: 1 Year
Top Features:
- 100VDC / 230VAC Voltage Rating
- 10A max. Input Current Rating
- 5A per channel Output Current Rating
- 1 x 2 way Terminals on Input side
The AS333 DC Power Distribution Board is designed to simplify power wiring tasks by providing 12 channels for supplying power to various devices. Say goodbye to the hassle of using terminal blocks to divide power, which can lead to wiring errors and troubleshooting difficulties.
Operating in ambient temperatures ranging from 0°C to 55°C with 85% relative humidity, this distribution board offers screw-type terminations on both the input and output sides. The input side features 2-way terminals suitable for 2.5mm sq. wire, while the output side is equipped with 3-way DD terminals for the same wire size.
- Operating ambient: 0 - 55°C, 85% RH
- Storage ambient: -20°C to 85°C
- Input side terminations: Screw type, 2 way terminals for 2.5mm sq. wire
- Output side terminations: Screw type, 3 way DD terminals for 2.5mm sq. wire
- Mounting: 35 mm DIN rail
- Dimension (W x H x D): 70 x 80 x 65 mm
- Weight: 130 gm
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
*Images are for illustration only; actual product may vary.
