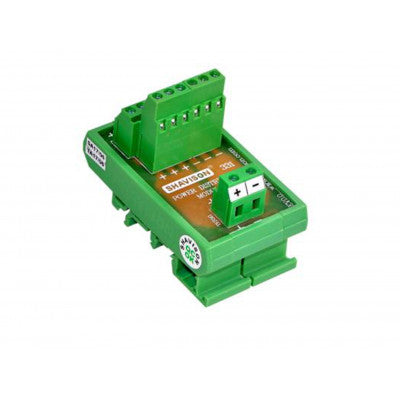

AS331 DC Power Distribution Board
A solution to simplify power wiring with multiple channels
- Input Current Rating: 10A
- Output Current Rating: 5A
- Series: AS
- Part Number: AS331
- Voltage Rating: 100VDC / 230VAC
- Number of Channels: 12
- Warranty: 1 Year
Top Features:
- 100VDC / 230VAC Voltage Rating
- 10A Input Current Rating
- 5A Output Current Rating per channel
- 1 x 2 way Terminals on Input side
The AS331 DC Power Distribution Board is designed to simplify power wiring for multiple channels. Say goodbye to the hassle of using terminal blocks to divide power supply, which can lead to increased wiring work and potential errors. With a voltage rating of 100VDC / 230VAC and 12 channels, this board ensures efficient power distribution.
Operating in ambient temperatures ranging from 0 to 55°C with 85% relative humidity, this distribution board offers reliable performance. The screw type terminations on both the input and output sides make installation easy. The compact design, suitable for 35 mm DIN rail mounting, ensures space-saving installation.
- Operating ambient: 0 - 55°C, 85% RH
- Storage ambient: -20°C to 85°C
- Input side terminations: Screw type, 2 way terminals for 2.5mm sq. wire
- Output side terminations: Screw type, 3 way DD terminals for 2.5mm sq. wire
- Mounting: 35 mm DIN rail
- Dimension (W x H x D): 50 x 80 x 65 mm
- Weight: 74 gm
For more details or bulk pricing inquiries, please contact our sales team directly at sales02@thansiv.com or call +91-8095406416.
*Images are for illustration only; actual product may vary.
