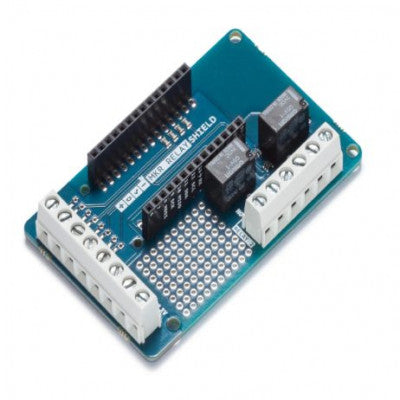

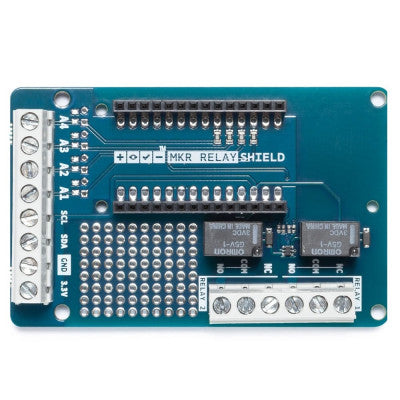

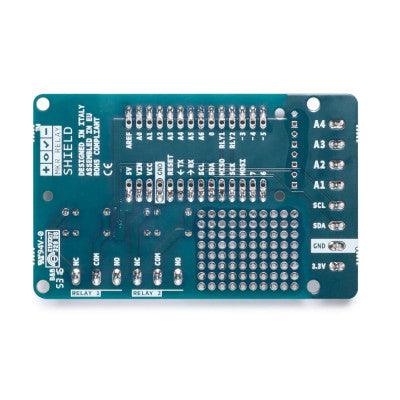

Arduino MKR Relay Proto Shield
Easily command relays with your MKR board and add components to your project.
- Relays: Two relays named RELAY1 and RELAY2
- Connections: NO, COM, and NC
- Terminal Blocks: 8 positions for A1 to A4 Analog input, SCL SDA for I2C, GND, and 3.3V output
- Proto Area: Yes
Features:
- Two relays with NO, COM, and NC connections
- Works with battery-powered boards
- 8 positions screw terminal blocks for easy connections
- 6 positions screw terminal blocks for each relay
The MKR Relay Protoshield allows you to easily add relays to your MKR board-based project. The shield provides two relays called RELAY1 and RELAY2 commanded by pin 1 and pin 2 respectively. The shield also provides an easy connection by means of screw terminal blocks to A1 to A4 analog inputs, I2C, and supply voltages.
Package Includes: 1 x Arduino MKR Relay Proto Shield
* Images are for illustration only; actual product may vary.
