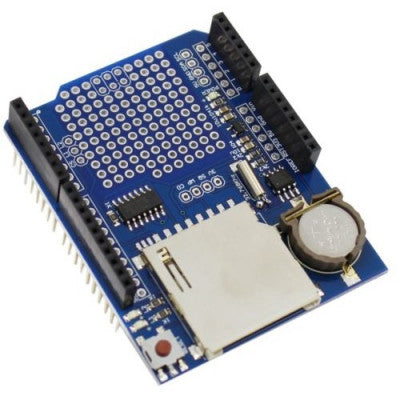

Arduino Data Logger Shield
A shield designed for easy data logging to SD cards with real-time clock functionality.
- SD Card Interface: Works with FAT16 or FAT32 formatted cards.
- Level Shifter Circuitry: Prevents possible damage to your SD card with 3.3v level shifting.
- Real-Time Clock (RTC): Ensures accurate timekeeping even when Arduino is unplugged.
- Battery Backup: Lasts for up to 2 years.
Specifications:
- Compatibility: Works with Arduino UNO, Duemilanove, Diecimila, Leonardo, ADK/Mega R3 or higher.
- Prototyping Area: Included for soldering connectors, circuitry, or sensors.
- Regulator: Onboard 3.3v regulator for reliable reference voltage and power for SD cards.
Top Features:
- Easy data logging to SD cards
- Real-time clock functionality
- Prototyping area for customization
- 3.3v level shifter for SD card protection
The Arduino Data Logger Shield is a valuable tool for logging sensor data to an SD card with minimal setup. The shield comes with libraries and example codes for easy setup with both SD and RTC functionalities.
The shield includes a Real-Time Clock module with a popular DS1307 RTC for accurate timekeeping, even in the absence of power. The SD card reader supports up to 32GB cards with FAT16 or FAT32 formatting, making it versatile for data storage.
Additionally, the shield offers a prototyping area for adding custom components like sensors. It also features onboard LEDs L1 & L2, which can be mapped to Arduino's digital pins for visual indications.
* Images are for illustration only; actual product may vary.
