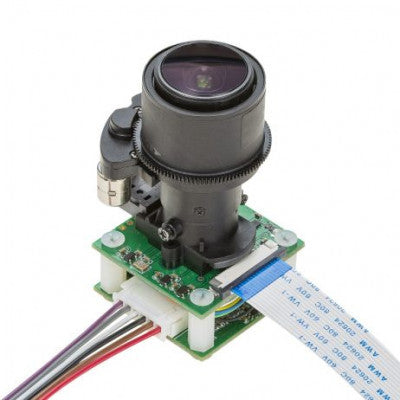

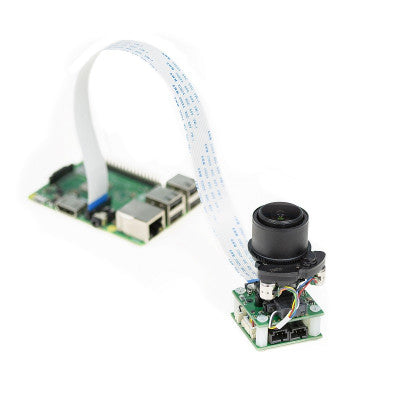

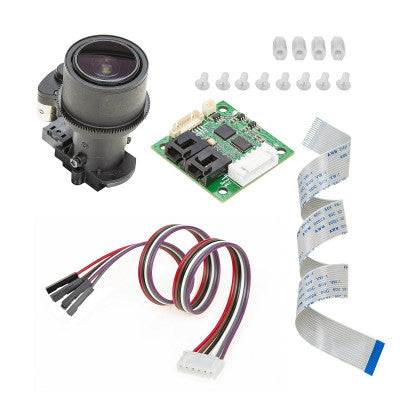

Arducam PTZ Pan Tilt Zoom Camera Controller
Real PTZ camera for Raspberry Pi and Jetson Nano/Xavier NX with autofocus control
- Focus Type: Auto
- IR Sensitivity: IR Cut Switch
- Interface: MIPI
- Resolution: 5 MP
- Sensor Colour: Colour
- Shutter Type: Rolling Shutter
- Focal-Length: 3.2-11.15%
- TTL: 52.140.2
- Image Circle: 6.9
- Lens Structure: 6G3P
- FOV: 1/2.7(16:9): H(113~30),V(60~16),D(137~34)
- 1/3(4:3): H(91~25),V(66~18),D(120~30)
- 1/4(4:3): H(67~18),V(49~13),D(90~22)
- M.O.D: 0.8m
- Focus: Front group: focus, Back group: Zoom
- Pan and Tilt Range: 0-180
- PWM Control Signal Frequency: 50HZ
- Auto Focus Time: 4s to 20s
- Zoom Range (Wide => Tele): 2317 steps 0.00396mm/step
- Focus Range (Near => Far): 3009 steps 0.0047mm/step
- Length (mm): 36
- Width (mm): 36
- Height (mm): 45
Features:
- Real PTZ with servos for directional control and varifocal lens
- Switchable IR Cut for day/night vision
- CSI connector for single camera monitoring multiple areas
- Autofocus control and pan/tilt/zoom keyboard support
PTZ stands for pan, tilt, and zoom, offering remote directional and zoom control. A PTZ camera like this Arducam model can replace multiple cameras, saving costs and time. The moveable lens allows zooming to specific areas of interest, making it a versatile surveillance solution.
* Images are for illustration only; actual product may vary.
