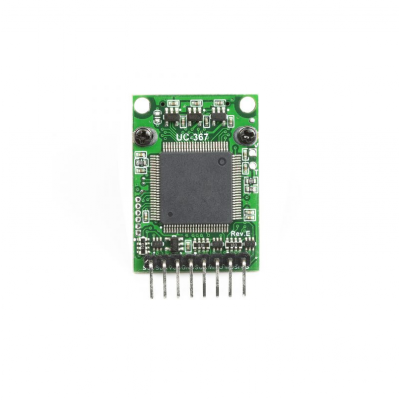

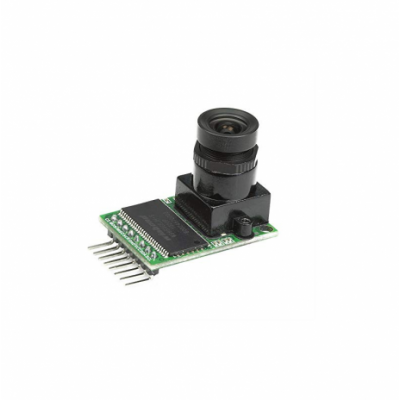

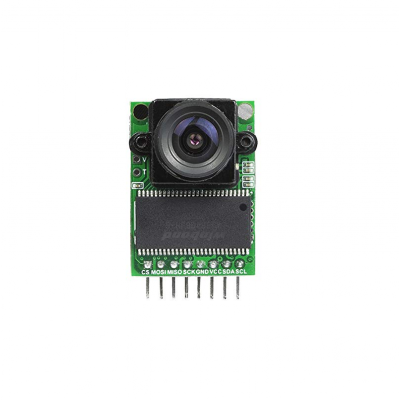

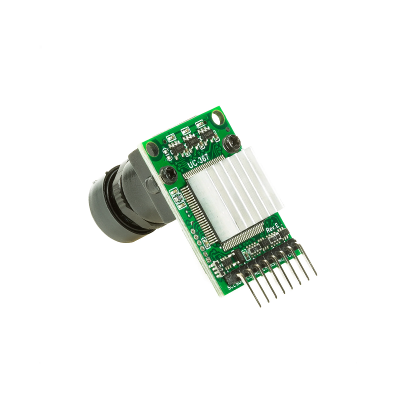

Arducam Mini Module Camera Shield 5 MP OV5642 Camera Module for Arduino
A versatile camera module for Arduino with improved performance
- Operating Voltage (VDC): 3.3 ~ 5
- SPI: Yes
- Lens (inches): 1/4
- Pixel Resolution: 2592 x 1944
- Pixel Size (um): 1.4 x 1.4
- Operating Temperature (C): -10 to 55
- Length (mm): 34
- Width (mm): 24
- Height (mm): 25
- Weight (gm): 20
Top Features:
- 5MP OV5642 image sensor
- M12 mount or CS-mount lens holder
- IR sensitive with proper lens combination
- Supports JPEG compression mode
The Arducam Mini Module Camera Shield 5 MP OV5642 Camera Module for Arduino is a performance improved version compared to its predecessor Arducam-M-5MP. It not only offers the capability to add a camera interface which doesn't have in some low-cost microcontrollers but also provides the capability to add multiple cameras to a single microcontroller. Capture decent 5MP JPEG images and do 5MP full resolution RAW image capture, making it the ideal solution for IoT and scientific image processing applications. Even more, it can record short movie clips as well.
Applications include IoT cameras, robot cameras, wildlife cameras, and other battery-powered products. It can be used in MCU, Raspberry Pi, ARM, DSP, FPGA platforms. The module is well mated with standard Arduino boards and provides an open-source code library for Arduino, STM32, Chip kit, Raspberry Pi, BeagleBone Black.
* Images are for illustration only; actual product may vary.
