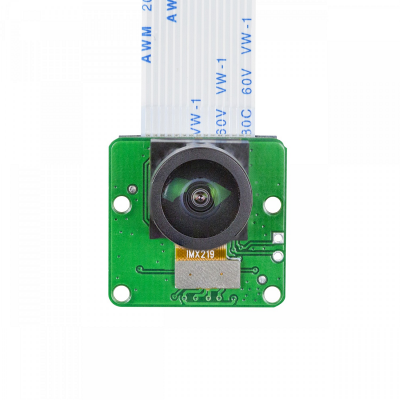

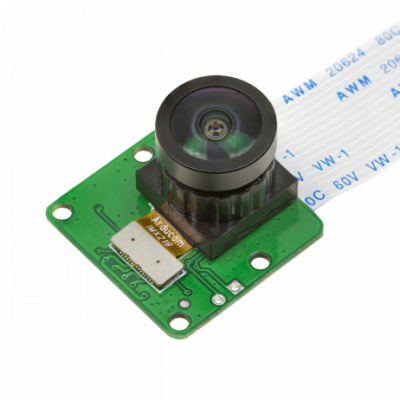

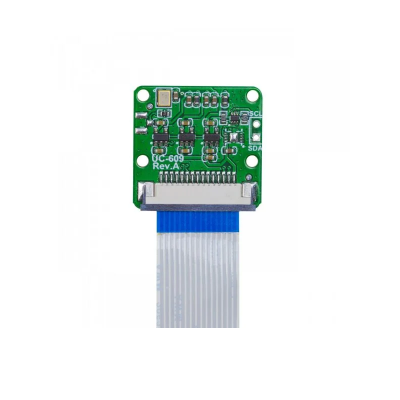

Arducam IMX219 Wide Angle Camera Module
High-quality camera module with wide-angle lens for NVIDIA Jetson Nano and Raspberry Pi
- Operating Voltage (VDC): 3.3 ~ 5
- Resolution: 8 Megapixel
- Pixel Resolution: 3280 x 2464
- Image Sensor: Sony 8MP IMX219
- Lens (inch): 1/4
- Lens Viewing Angle (FOV): 175
- Length (mm): 26
- Width (mm): 26
- Height (mm): 20
- Weight (gm): 8
Features:
- Sony 8MP IMX219 Sensor
- Frame Rate: 30fps@8MP, 60fps@1080p, 180fps@720p
- Data Format: RAW8/RAW10
- EFL: 2.5mm
Arducam IMX219 Wide Angle Camera Module for NVIDIA Jetson Nano, Raspberry Pi Compute Module 4, 3+ is a top choice for budget-friendly cameras. With the IMX219 image sensor, it delivers high resolution and frame rates up to 180fps at 720P. The 1/4 8MP IMX219 sensor ensures sharp image quality. Equipped with a 175 wide-angle M12 lens, it offers a broader field of view compared to standard lenses. Compatible with various hardware including NVIDIA Jetson Nano, ARM, DSP, FPGA, and more.
Package Includes:
1 x Arducam IMX219 Wide Angle Camera Module for NVIDIA Jetson Nano, Raspberry Pi Compute Module 4, 3+
1 x 1.0mm pitch 15cm 15 pin FPC cable
* Images are for illustration only; actual product may vary.
