Arducam Mini Module Camera Shield with OV2640
High definition 2MP SPI camera with easy-to-use hardware interface
- Operating Voltage (VDC): 5
- SPI: Yes
- Lens (inch): 1/4
- Pixel Resolution: 1600 X 1200
- Pixel Size (um): 2.2 x 2.2
- Operating Temperature Range (C): -10 to 55

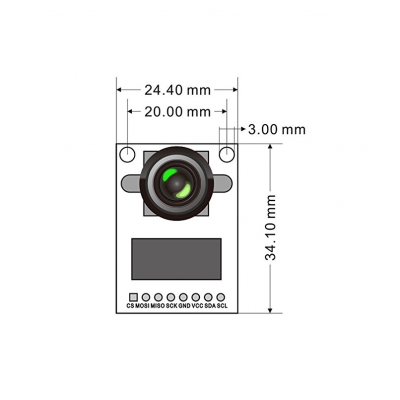

- Length (mm): 34
- Width (mm): 24
- Height (mm): 25
- Weight (gm): 20
Top Features:
- 2MP image sensor OV2640
- M12 mount or CS-mount lens holder
- IR sensitive with proper lens combination
- I2C interface for sensor configuration

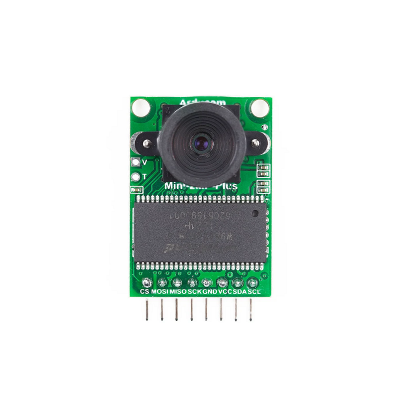

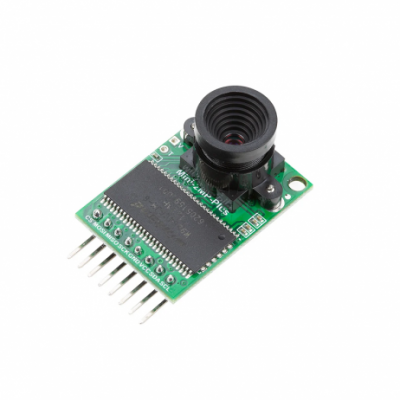

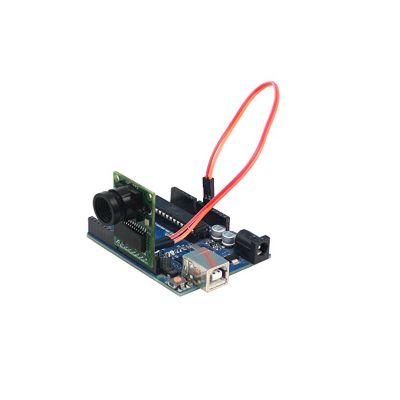

The Arducam Mini Module Camera Shield with OV2640 is a high definition 2MP SPI camera that simplifies the camera control interface. It integrates the 2MP CMOS image sensor OV2640 and offers a miniature size with an easy-to-use hardware interface and open-source code library. This camera shield can be used with various platforms like Arduino, Raspberry Pi, and more, as long as they have SPI and I2C interfaces. It not only allows adding a camera interface to low-cost microcontrollers but also supports adding multiple cameras to a single microcontroller.
Applications include IoT cameras, robot cameras, wildlife cameras, and other battery-powered products. It can be utilized in MCU, Raspberry Pi, ARM, DSP, FPGA platforms.
The Arducam Mini Module Camera Shield package includes 1 x Arducam 2 MP Mini Module Camera Shield with OV2640 Lens for Arduino.
* Images are for illustration only; actual product may vary.
